Schneider Electric
199X-8
1 / 1
Descrizione

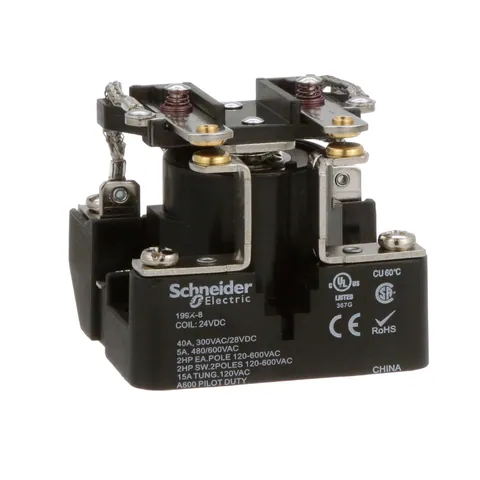

The SE Relays 199 series, open type, heavy duty power relay offers high-capacity switching with high dielectric strength. High-power contacts rated of 40A resistive and 2hp at 120VAC to 600 VAC, input coil voltage 24VDC with DPST silver alloy contact configuration. Riveted construction helps to increase the mechanical life of the relay. Environmentally friendly design is compliant with the European Restriction of Hazardous Substances directive (RoHS).- Country of Origin
- CN
- Part Number
- 199X-8
- EAN
- 39122324
- UNSPSC
- 39122324
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
Invia una richiesta di prezzo
1
Metodi di pagamento:
Specifications
- Cover Type
- open cover
- Contacts Type And Composition
- 1 NO
- Switch Function
- DPST-NO
- Product Or Component Type
- power relay
Complementary
- Input Voltage
- 24 V DC
- Voltage Range
- 0.85...1.1 Un AC/DC
- [Ie] Rated Operational Current
- 40 A at 300 V AC (on resistive load) conforming to UL || 40 A at 28 V DC (on resistive load) conforming to UL || 5 A at 480 V AC (on resistive load) conforming to UL || 5 A at 600 V AC (on resistive load) conforming to UL || 15 A at 120 V AC (tungsten filament) conforming to UL
- Minimum Switching Current
- 1000 mA 5 V AC/DC
- Input Resistance
- 290 Ohm
- Connections - Terminals
- screw terminal
- Power Consumption In W
- 4-4 W DC
- Contacts Material
- silver alloy contacts
- Power Consumption In Va
- 10-10 VA AC
- [Ue] Rated Operational Voltage
- 6...600 V AC 50-60 Hz || 6...250 V DC
- Awg Gauge
- AWG 14
- Input Current
- 40 A
- Drop-Out Voltage Threshold
- >= 0.1 Uc AC/DC
- Maximum Horse Power Rating
- 2 hp 120...600 V AC 50/60 Hz
- Tightening Torque
- 1.2-1.7 N.m
- Maximum Switching Voltage
- 600 V DC
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1705008EN
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environment
- Product Certifications
- UL Listed || CSA || CE
- Ambient Air Temperature For Operation
- -55-55 °C
- Ambient Air Temperature For Storage
- -55-100 °C
- Electrical Durability
- 100000 cycles resistive DC load
- Dielectric Strength
- 2200 V AC between coil and contact || 2200 V AC between poles || 1500 V AC between open contacts
