Schneider Electric
8911DPSO43V02

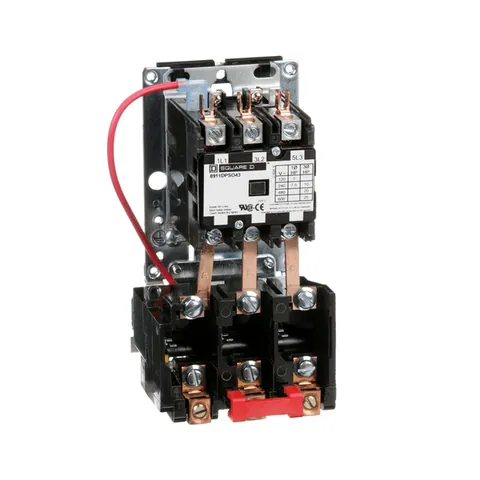

NEMA starter, Definite Purpose, 40A, 25HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, open
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
Invia una richiesta di prezzo
1
Metodi di pagamento:
Additional Information
- Part Number
- 8911DPSO43V02
- UPC
- 785901856368
- UNSPSC
- 39121521
- Tariff Code
- 8536504000
- Country of Origin
- CN
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant with Exemptions
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Complementary
- Thermal Overload Type
- melting alloy
- Nema Degree Of Protection
- not rated (open device)
- Range Of Product
- DPS
- Number Of Thermal Units Required
- 3
- Locked Rotor Rated Current
- 240 A 230 V AC || 200 A 460 V AC || 160 A 575 V AC
- Poles Description
- 3P
Specifications
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz || 120 V AC 60 Hz
- Maximum Horse Power Rating
- 3-3 hp 115 V AC, 1 phase || 10-10 hp 230 V AC, 3 phase || 7.5-7.5 hp 230 V AC, 1 phase || 20-20 hp 460 V AC, 3 phase || 25-25 hp 575 V AC, 3 phase
- Line Rated Current
- 40 A
- Product Or Component Type
- Definite Purpose Starter
- Phase
- 3 phase
- [Ue] Rated Operational Voltage
- 600 V AC
Contractual warranty
- Warranty
- 18 months
