Schneider Electric
9001K1L

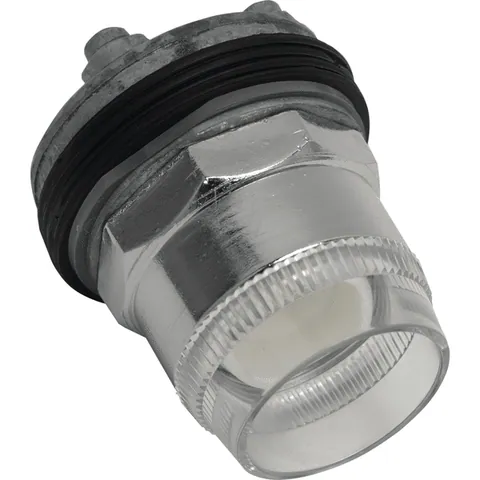

Illuminated push button head, Harmony 9001K, metal, plastic guard flush, without cap, 30mm, spring return, without bulb
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
Invia una richiesta di prezzo
1
Metodi di pagamento:
Condizioni del prodotto:
Offerta con tempi di consegna del produttore
Spedizione in:Su richiesta
Miglior prezzo:
€11.72
Additional Information
- Part Number
- 9001K1L
- UPC
- 785901909224
- UNSPSC
- 39122216
- Tariff Code
- 8538908180
- Country of Origin
- MX
Environment
- Product Certifications
- NEMA || UL listed file E42259 CCN NKCR || CSA LR 25490 class 3211 03 || CE
- Nema Degree Of Protection
- NEMA 1/2/3/3R/4/6/12/13
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Circularity Profile
- N/A
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Sustainable Offer Status
- Green Premium product
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Complementary
- Contacts Type And Composition
- without contact block
- Light Source
- without
- Bezel Material
- metal
- [Ie] Rated Operational Current
- 10 A, AC-15 || 10 A, DC-13
- Light Source
- bulb not included
- Light Block Supply
- without supply
- Mounting Diameter
- 30 mm
- Operator Profile
- flush
- Type Of Operator
- spring return
- Cap/Operator Or Lens Colour
- without cap
- Size
- 30 mm
- Bulb Base
- BA 9s
- Device Presentation
- basic element
Specifications
- Operator Additional Information
- plastic guard
- Range Of Product
- Harmony 9001K
- Product Or Component Type
- head for illuminated push-button
- Device Short Name
- K
