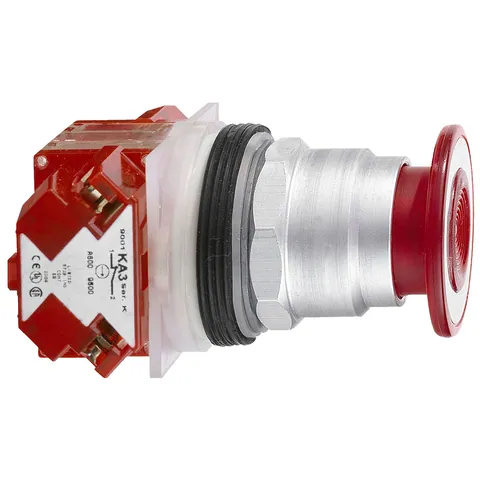

9001KR9R20H6

Environment

Product Certifications

NEMA || UL 508

Ambient Air Temperature For Operation

-25-70 °C

Shock Resistance

50 gn IEC 60068-2-27

Vibration Resistance

7 gn 2-500 Hz)IEC 60068-2-6

Ip Degree Of Protection

IP66 IEC 60529

Standards

EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14

Ambient Air Temperature For Storage

-40-70 °C

Overvoltage Category

class II IEC 61140

Nema Degree Of Protection

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6

Protective Treatment

TC

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP121006EN

Sustainable Offer Status

Green Premium product

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

N/A

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Operator Additional Information

metal guard

Short-Circuit Protection

10 A cartridge fuse EN/IEC 60947-5-1

Contacts Material

silver alloy contacts

Positive Opening

with IEC 60947-5-2

Mounting Diameter

30 mm

Operator Profile

mushroom Ø 35 mm

[Ith] Conventional Free Air Thermal Current

10 A

Rated Breaking Capacity

3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

Shape Of Signaling Unit Head

round

Cap/Operator Or Lens Colour

red

Head Material

plastic

Net Weight

0.141 kg

[Uimp] Rated Impulse Withstand Voltage

2.5 kV EN/IEC 60947-1

Size

30 mm

Device Presentation

complete product

Connections - Terminals

screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1

[Icm] Rated Short-Circuit Making Capacity

12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

Contacts Type And Composition

1 NC

[Ui] Rated Insulation Voltage

250 V 3)EN/IEC 60947-1

Bezel Material

metal

[Ie] Rated Operational Current

3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA

Contact Operation

standard

Operator Position Information

2 positions

Mechanical Durability

5000000 cycles

Type Of Operator

push-pull

Operating Position

any position

Tightening Torque

0.8-0.8 N.m EN/IEC 60947-1

Shape Of Screw Head

cross slotted

Specifications

Range Of Product

Harmony 9001K

Type Of Operator

push-pull

Product Or Component Type

push-button

Operator Profile

red mushroom Ø 35 mm, unmarked

Device Short Name

9001K
