Schneider Electric
9001KR9R

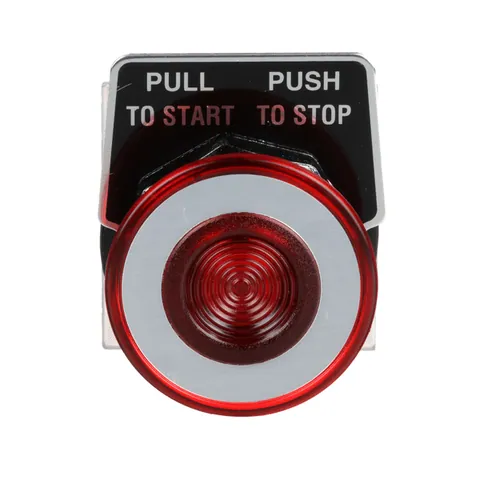

30mm Push Button, Type K, push pull operator, red mushroom cap
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
Invia una richiesta di prezzo
1
Metodi di pagamento:
Un totale di 46 Parts In-Stock da 14 Distributors
Condizioni del prodotto:
Additional Information
- Part Number
- 9001KR9R
- UPC
- 785901320128
- UNSPSC
- 39122216
- Tariff Code
- 8538908180
- Country of Origin
- MX
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- N/A
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Specifications
- Operator Additional Information
- screw-on plastic
- Range Of Product
- Harmony 9001K
- Product Or Component Type
- head for push-button
- Operator Profile
- red flush
- Device Short Name
- 9001K
Complementary
- Mounting Diameter
- 30 mm
- Type Of Operator
- spring return
- Operator Profile
- mushroom Ø 41 mm
- Shape Of Signaling Unit Head
- round
- Cap/Operator Or Lens Colour
- red
- Contacts Type And Composition
- without contact block
- Bezel Material
- metal
- Operator Position Information
- 2 positions
- Type Of Operator
- push-pull
Contractual warranty
- Warranty
- 18 months
