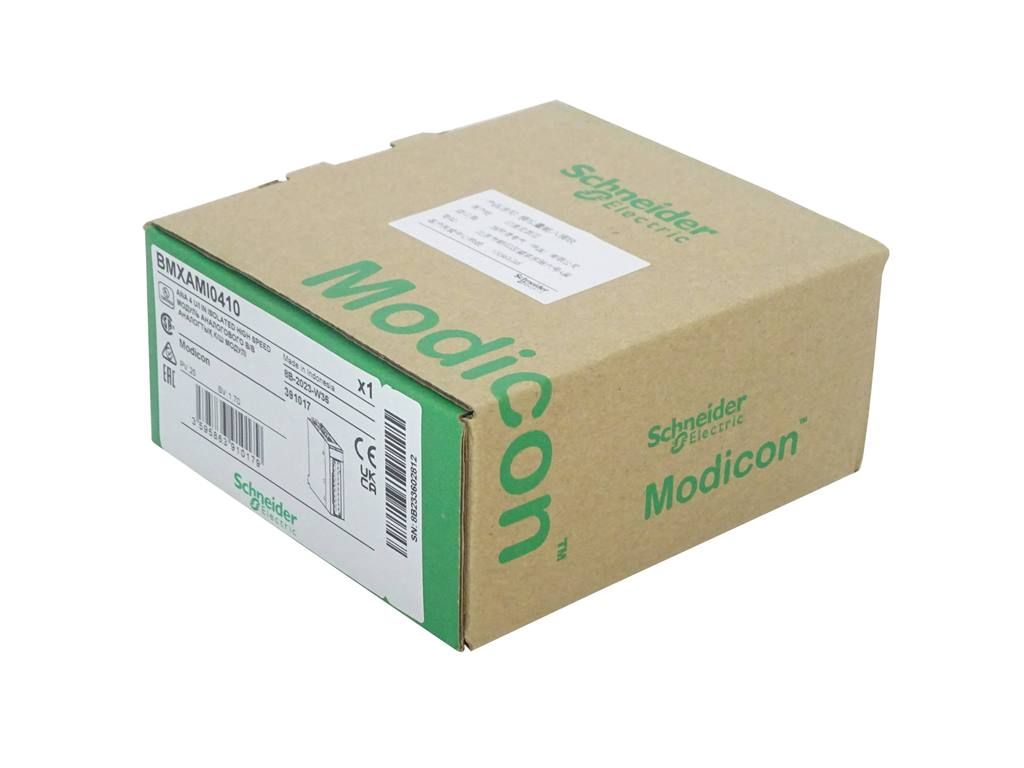

BMXAMI0410

Additional Information

Part Number

BMXAMI0410

UNSPSC

32151705

Tariff Code

8538908180

Country of Origin

FR

Environment

Product Certifications

CE || RCM || CSA || EAC || Merchant Navy || UL

Ambient Air Temperature For Operation

0-60 °C

Standards

EN/IEC 61010-2-201 || EN/IEC 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201

Shock Resistance

30 gn

Vibration Resistance

3 gn

Directives

2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility

Ambient Air Temperature For Storage

-40-85 °C

Relative Humidity

5-95 % 55-55 °C without condensation

Ip Degree Of Protection

IP20

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Mtbf Reliability

1200000 H

Measurement Error

<= 0.1 % of full scale +/- 10 V 0...60 °C || <= 0.1 % of full scale +/- 5 V 0...60 °C || <= 0.1 % of full scale 0...10 V 0...60 °C || <= 0.1 % of full scale 0...5 V 0...60 °C || <= 0.1 % of full scale 1...5 V 0...60 °C || <= 0.3 % of full scale +/- 20 mA 0...60 °C || <= 0.3 % of full scale 0...20 mA 0...60 °C || <= 0.3 % of full scale 4...20 mA 0...60 °C || 0.075 % of full scale +/- 10 V 25 °C || 0.075 % of full scale +/- 5 V 25 °C || 0.075 % of full scale 0...10 V 25 °C || 0.075 % of full scale 0...5 V 25 °C || 0.075 % of full scale 1...5 V 25 °C || 0.15 % of full scale +/- 20 mA 25 °C || 0.15 % of full scale 0...20 mA 25 °C || 0.15 % of full scale 4...20 mA 25 °C

Maximum Conversion Value

+/- 11.4 V +/- 10 V || +/- 11.4 V +/- 5 V || +/- 11.4 V 0...10 V || +/- 11.4 V 0...5 V || +/- 11.4 V 1...5 V || 0...30 mA +/- 20 mA || 0...30 mA 0...20 mA || 0...30 mA 4...20 mA

Type Of Filter

first order digital filtering

Status Led

1 LED (Green) RUN || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) ERR || 1 LED (Red) I/O

Precision Of Internal Conversion Resistor

0.1 % - 15 ppm/°C

Temperature Drift

15 ppm/°C +/- 10 V || 15 ppm/°C +/- 5 V || 15 ppm/°C 0...10 V || 15 ppm/°C 0...5 V || 15 ppm/°C 1...5 V || 30 ppm/°C +/- 20 mA || 30 ppm/°C 0...20 mA || 30 ppm/°C 4...20 mA

Recalibration

internal

Common Mode Rejection

90 dB

Current Consumption

150 mA 3.3 V DC || 45 mA 24 V DC

Analogue Input Resolution

16 bits

Minimum Crosstalk Attenuation

80 dB

Net Weight

0.143 kg

Input Impedance

10 MOhm in voltage mode || 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode

Isolation Voltage

300 V DC between channels || 1400 V DC between channels and ground || 1400 V DC between channels and bus

Fast Read Cycle Time

1 ms + 1 ms x number of channels used

Power Consumption In W

0.82 W 24 V DC typical || 1.30 W 24 V DC maximum || 0.32 W 3.3 V DC typical || 0.48 W 3.3 V DC maximum

Digital Value Format

32768 to + 32767 in maximum user scale || +/- 10000 by default

Nominal Read Cycle Time

5 ms for 4 channels

Operating Altitude

0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor

Analog/Digital Conversion

24 bits

Measurement Resolution

0.35 mV +/- 10 V || 0.35 mV +/- 5 V || 0.35 mV 0...10 V || 0.35 mV 0...5 V || 0.35 mV 1...5 V || 0.92 µA +/- 20 mA || 0.92 µA 0...20 mA || 0.92 µA 4...20 mA

Permitted Overload On Inputs

+/- 30 V +/- 10 V || +/- 30 V +/- 5 V || +/- 30 V 0...10 V || +/- 30 V 0...5 V || +/- 30 V 1...5 V || +/- 90 mA +/- 20 mA || +/- 90 mA 0...20 mA || +/- 90 mA 4...20 mA

Specifications

Range Of Product

Modicon X80

Product Or Component Type

analog input module

Input Level

high level

Electrical Connection

20 ways 1 connector

Input Output Isolation

isolated

Analogue Input Number

4

Analogue Input Type

current +/- 20 mA || current 0...20 mA || current 4...20 mA || voltage +/- 10 V || voltage +/- 5 V || voltage 0...10 V || voltage 0...5 V || voltage 1...5 V
