Schneider Electric
HOM2040L125PC
1 / 6
Descrizione
Attivo maturo

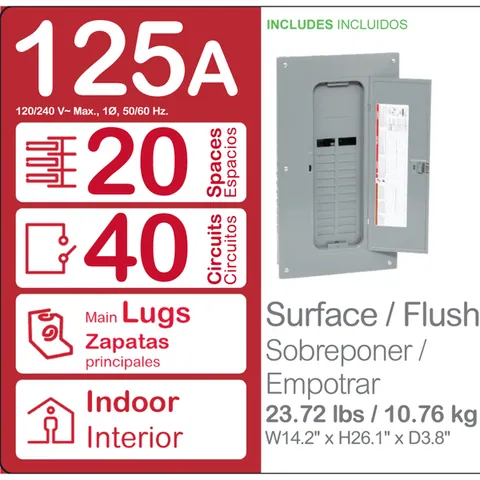

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 125A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 20 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 6 AWG to 1/0 AWG copper or 6 AWG to 2/0 AWG aluminum wire. This Homeline load center has a height of 26.02 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.- Country of Origin
- US
- Part Number
- HOM2040L125PC
- Tariff Code
- 8537109150
- EAN
- 39121101
- UPC
- 785901860693
- UNSPSC
- 39121101
$67.05
net1
Metodi di pagamento:
- Migliore offerta da:
Fornitore Automa.Net di fiducia- Disponibilità:
- 5 pz.DisponibileAggiornato il: 21-11-2024
- Garanzia:
- 12 mesi
- Consegna stimata:
- Su richiesta
- Condizione:
- Nuove eccedenze
Nuove eccedenze - Un articolo nuovo, inutilizzato e non danneggiato senza garanzia del produttore. L'articolo può arrivare senza confezione originale o in una confezione sostitutiva. Se fornita, la scatola potrebbe essere stata aperta.
Processo di Pagamento Sicuro
Politiche di Reso e Rimborso
Politiche di Spedizione
Politiche di Garanzia
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1403002
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- N/A
- Eu Rohs Directive
- Compliant
Complementary
- Height
- 661 mm
- Bus Rated Current
- 125.0 A
- Phase
- 1 phase
- Short-Circuit Current
- 10 kA
- Number Of Tandem Circuit Breakers
- 20
- Material
- tin plated aluminium: busbar
- Surface Finish
- baked enamel Gray
- Enclosure Material
- welded sheet steel
- Awg Gauge
- AWG 6...AWG 2/0 aluminium || AWG 6...AWG 1 copper || AWG 6...AWG 1/0 copper
- Width
- 362 mm
- Wiring Configuration
- 3-wire
- Depth
- 95 mm
- Device Composition
- grounding bar (ordered separately)
- Box Number
- 8
Specifications
- Range Of Product
- Homeline
- Product Or Component Type
- Load Center
- Number Of Circuits
- 40
- Number Of Spaces
- 20
- Nema Degree Of Protection
- NEMA 1 indoor || NEMA 3R outdoor
- Cover Type
- combination flush/surface cover
- Line Rated Current
- 125 A
- Load Center Type
- PoN Convertible Mains (lugs)
Environment
- Product Certifications
- UL listed file E-6294
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
