Schneider Electric
HOM225

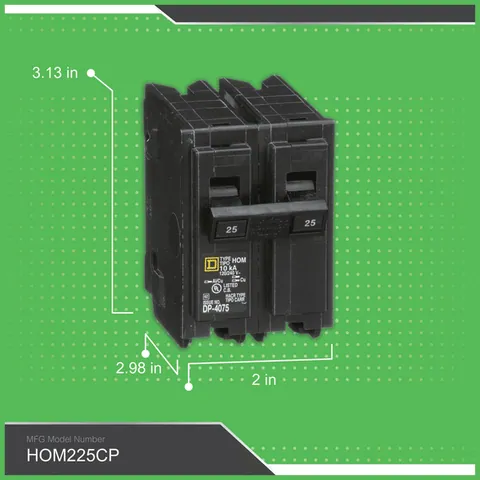

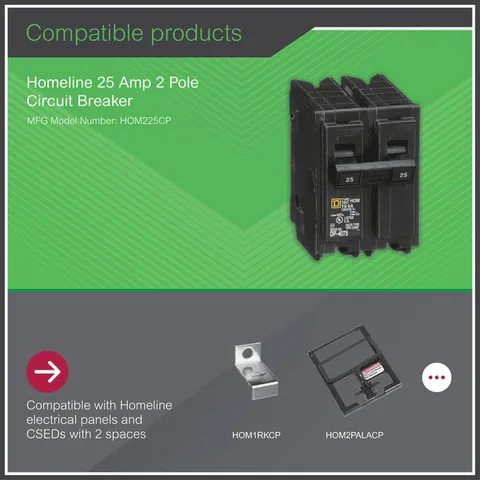

Mini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
Invia una richiesta di prezzo
1
Metodi di pagamento:
Un totale di 4 Parts In-Stock da 1 Distributor
Condizioni del prodotto:
Additional Information
- Part Number
- HOM225
- UPC
- 785901065487
- UNSPSC
- 39121603
- Tariff Code
- 8536200040
- Country of Origin
- MX
Environment
- Ambient Air Temperature For Operation
- 40 °C
Contractual warranty
- Warranty
- Lifetime
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1308001
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- N/A
- Eu Rohs Directive
- Compliant
Complementary
- Height
- 3.13 in
- Tightening Torque
- 4.0-4.0 N.m 2.5-10 mm² (AWG 16...AWG 14) || 4.0-4.0 N.m 4-20 mm² (AWG 12...AWG 4)
- Width
- 2 in
- Depth
- 2.98 in
Specifications
- Product Certifications
- UL Listed
- Circuit Breaker Type
- standard
- Range Of Product
- Homeline
- Number Of Spaces Required
- 2
- Product Or Component Type
- miniature circuit-breaker
- Circuit Breaker Application
- HACR rated
- Mounting Mode
- plug-in
- Short-Circuit Current
- 10 kA
- Poles Description
- 2P
- Electrical Connection
- clamp terminal for 2 cables
- Line Rated Current
- 25 A
- [Ue] Rated Operational Voltage
- 120/240 V AC
- Awg Gauge
- 1 x AWG 14...AWG 8 ( aluminium/copper ) || 2 x AWG 14...AWG 10 ( copper )
Documenti
Data Sheet
