Schneider Electric
LA9G4701

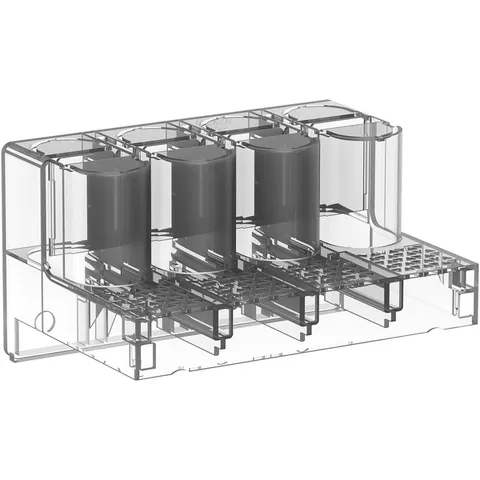

Terminal shroud,TeSys Giga contactor,for LC1G115-225,4 Pole,IP20
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
€16.60
1
Metodi di pagamento:
Un totale di 25 Parts In-Stock da 16 Distributors
Condizioni del prodotto:
Additional Information
- Part Number
- LA9G4701
- UNSPSC
- 39121424
- Tariff Code
- 8547200000
Complementary
- Height
- 121.5 mm
- Net Weight
- 0.133 kg
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Width
- 96.5 mm
- Depth
- 140 mm
- Product Compatibility
- LC1G115...225
Environment
- Ambient Air Temperature For Operation
- -60-80 °C
- Standards
- EN/IEC 60947-1 || UL 60947-1 || CSA C22.2 No 60947-1 || GB/T 14048
- Pollution Degree
- 3 IEC 60947-1
- Ambient Air Temperature For Storage
- -40-60 °C
- Operating Altitude
- 9842.52 ft (3000 m) without derating || 5000 m with derating factor
Specifications
- Product Or Component Type
- terminal shroud
- Poles Description
- 4P
- Quantity Per Set
- set of 1
- Accessory / Separate Part Type
- installation accessories
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant with Exemptions
- Halogen Content Performance
- Halogen free plastic parts product
