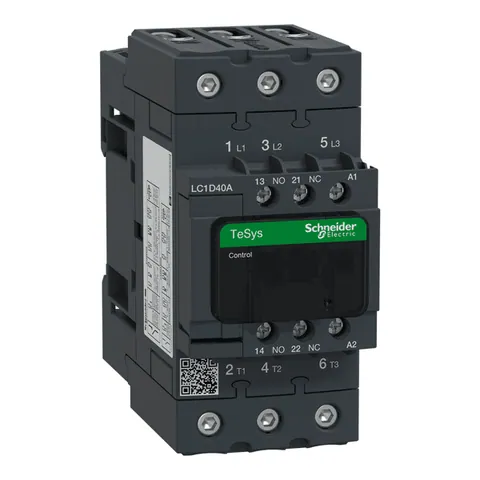

Schneider Electric LC1D40AU7

The TeSys Deca contactor is designed for seamless integration into control systems. It can be used as a motor starter in various applications. This 40A inductive 3 pole IEC contactor is available in multiple contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps.

This contactor can be mounted on DIN rail or directly to a panel. It has both Horsepower and Kw motor rating for international acceptance. The contactor is rated for 10HP at 200 to 208VAC, 10HP at 240VAC, 30HP at 480VAC and 30HP at 600VAC three phase. It is also rated for 3HP at 115VAC and 5HP at 240VAC single phase.

When used with a 480VAC up to 110A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 90A Class J or CC fuse, this contactor can have a SCCR up to 100kA. The contactor is supplied with a 240 VAC 50/60 Hz coil.

The contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 1.87 lbs.

The contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. It also meets the requirements of RoHS/REACh making it a Green Premium product.
