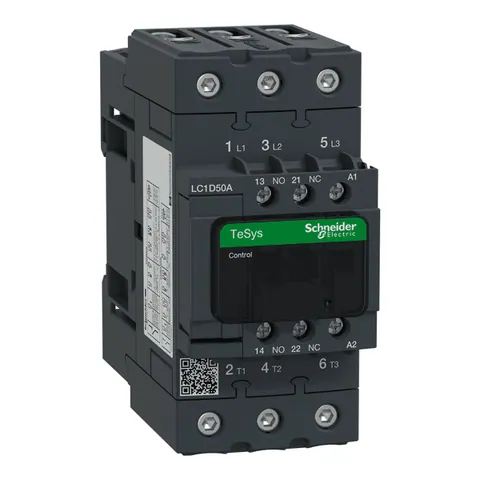

LC1D50AU7

Environment

Product Certifications

CSA || BV || GL || RINA || DNV || UL || GOST || LROS (Lloyds register of shipping) || CCC

Height

122 mm

Standards

CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1

Climatic Withstand

IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat

Net Weight

0.855 kg

Flame Retardance

V1 conforming to UL 94

Protective Treatment

THIEC 60068-2-30

Ip Degree Of Protection

IP20 front face IEC 60529

Mechanical Robustness

vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor closed 15 Gn for 11 ms) || shocks contactor open 10 Gn for 11 ms)

Operating Altitude

0...9842.52 ft (0...3000 m)

Fire Resistance

850 °C IEC 60695-2-1

Width

55 mm

Depth

120 mm

Permissible Ambient Air Temperature Around The Device

-40-60 °C || 60-70 °C with derating

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1503009EN

Sustainable Offer Status

Green Premium product

Pvc Free

Yes

Toxic Heavy Metal Free

Yes

Reach Regulation

Free of Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Reach Free Of Svhc

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Circularity Profile

ENVEOLI1503009EN

Eu Rohs Directive

Compliant

Complementary

Non-Overlap Time

1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact

Minimum Switching Current

5 mA for signalling circuit

Power Dissipation Per Pole

3.7 W AC-3 || 9.6 W AC-1 || 3.7 W AC-3e

Average Impedance

1.5 mOhm - Ith 80 A 50 Hz for power circuit

Auxiliary Contact Composition

1 NO + 1 NC

[Ith] Conventional Free Air Thermal Current

10 A (at 60 °C) for signalling circuit || 80 A (at 60 °C) for power circuit

Control Circuit Voltage Limits

0.3...0.6 Uc -40-70 °C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60 °C operational AC 50 Hz || 0.85...1.1 Uc -40-60 °C operational AC 60 Hz || 1...1.1 Uc 60-70 °C operational AC 50/60 Hz

Mounting Support

rail || plate

Contact Compatibility

M2

Control Circuit Type

AC 50/60 Hz

Safety Reliability Level

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Pollution Degree

3

Insulation Resistance

> 10 MOhm for signalling circuit

Rated Breaking Capacity

900 A at 440 V for power circuit conforming to IEC 60947

Irms Rated Making Capacity

140 A AC for signalling circuit conforming to IEC 60947-5-1 || 250 A DC for signalling circuit conforming to IEC 60947-5-1 || 900 A at 440 V for power circuit conforming to IEC 60947

Associated Fuse Rating

10 A gG for signalling circuit conforming to IEC 60947-5-1 || 100 A gG at <= 690 V coordination type 1 for power circuit || 100 A gG at <= 690 V coordination type 2 for power circuit

Inrush Power In Va

140-140 VA 60 Hz cos phi 0.75 (at 20 °C) || 160-160 VA 50 Hz cos phi 0.75 (at 20 °C)

[Uimp] Rated Impulse Withstand Voltage

6 kV IEC 60947

Pole Contact Composition

3 NO

Connections - Terminals

control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end || power circuit: screw connection 1 1-35 mm² - cable stiffness: flexible without cable end || power circuit: screw connection 2 1-25 mm² - cable stiffness: flexible without cable end || power circuit: screw connection 1 1-35 mm² - cable stiffness: flexible with cable end || power circuit: screw connection 2 1-25 mm² - cable stiffness: flexible with cable end || power circuit: screw connection 1 1-35 mm² - cable stiffness: solid without cable end || power circuit: screw connection 2 1-25 mm² - cable stiffness: solid without cable end

Coil Technology

without built-in suppressor module

Operating Time

4...19 ms opening || 12...26 ms closing

Minimum Switching Voltage

17 V for signalling circuit

Maximum Operating Rate

3600 cyc/h 60 °C

Signalling Circuit Frequency

25...400 Hz

Tightening Torque

control circuit 1.7 N.m EverLink BTR screw connectors flat Ø 6 mm || control circuit 1.7 N.m EverLink BTR screw connectors Philips No 2 || power circuit 8 N.m EverLink BTR screw connectors 25-35 mm² hexagonal 4 mm || power circuit 5 N.m EverLink BTR screw connectors 1-25 mm² hexagonal 4 mm || control circuit 1.7 N.m EverLink BTR screw connectors pozidriv No 2 || power circuit 2.5 N.m EverLink BTR screw connectors pozidriv No 2

Electrical Durability

1.45 Mcycles 50 A AC-3 <= 440 V || 1.1 Mcycles 80 A AC-1 <= 440 V || 1.45 Mcycles 50 A AC-3e <= 440 V

Mechanical Durability

6 Mcycles

Auxiliary Contacts Type

mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

Compatibility Code

LC1D

Hold-In Power Consumption In Va

13-13 VA 60 Hz cos phi 0.3 (at 20 °C) || 15-15 VA 50 Hz cos phi 0.3 (at 20 °C)

Overvoltage Category

III

Maximum Horse Power Rating

3 hp at 115 V AC 50/60 Hz for 1 phase motors || 7.5 hp at 230/240 V AC 50/60 Hz for 1 phase motors || 15 hp at 200/208 V AC 50/60 Hz for 3 phase motors || 15 hp at 230/240 V AC 50/60 Hz for 3 phase motors || 40 hp at 460/480 V AC 50/60 Hz for 3 phase motors || 40 hp at 575/600 V AC 50/60 Hz for 3 phase motors

Motor Power Kw

15 kW at 220...230 V AC 50/60 Hz (AC-3) || 22 kW at 380...400 V AC 50/60 Hz (AC-3) || 30 kW at 500 V AC 50/60 Hz (AC-3) || 33 kW at 660...690 V AC 50/60 Hz (AC-3) || 25 kW at 415 V AC 50/60 Hz (AC-3) || 30 kW at 440 V AC 50/60 Hz (AC-3) || 11 kW at 400 V AC 50/60 Hz (AC-4) || 15 kW at 220...230 V AC 50/60 Hz (AC-3e) || 22 kW at 380...400 V AC 50/60 Hz (AC-3e) || 30 kW at 500 V AC 50/60 Hz (AC-3e) || 33 kW at 660...690 V AC 50/60 Hz (AC-3e) || 25 kW at 415 V AC 50/60 Hz (AC-3e) || 30 kW at 440 V AC 50/60 Hz (AC-3e)

[Ui] Rated Insulation Voltage

power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL || power circuit 690 V IEC 60947-4-1

[Icw] Rated Short-Time Withstand Current

400 A 40 °C - 10 s for power circuit || 810 A 40 °C - 1 s for power circuit || 84 A 40 °C - 10 min for power circuit || 208 A 40 °C - 1 min for power circuit || 100 A - 1 s for signalling circuit || 120 A - 500 ms for signalling circuit || 140 A - 100 ms for signalling circuit

Heat Dissipation

4-5 W at 50/60 Hz

Protective Cover

with

Specifications

[Uc] Control Circuit Voltage

240 V AC 50/60 Hz

[Ue] Rated Operational Voltage

power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC

Range Of Product

TeSys Deca

Contactor Application

motor control || resistive load

Product Or Component Type

contactor

Range

TeSys || TeSys Deca

Utilisation Category

AC-4 || AC-1 || AC-3 || AC-3e

[Ie] Rated Operational Current

50 A (at <60 °C) at <= 440 V AC AC-3 for power circuit || 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit || 50 A (at <60 °C) at <= 440 V AC AC-3e for power circuit

Poles Description

3P

Device Short Name

LC1D
