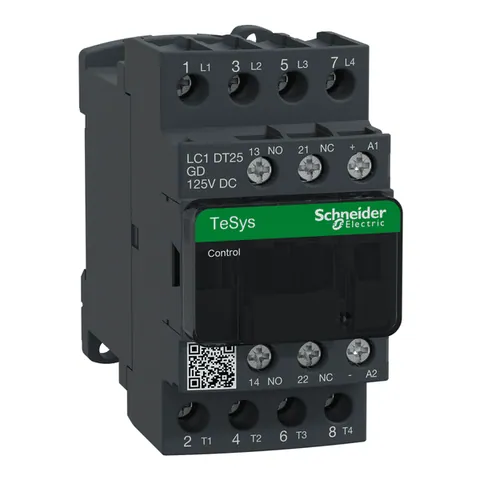

Schneider Electric LC1DT25GD

The TeSys D contactor is engineered for integration into control systems, serving as a reliable component for motor starters across various applications. With a rated operational current of 25A and operational voltage up to 690V AC, this contactor is suitable for resistive loads. It features four normally open contacts and is equipped with a 125VDC coil along with a transient suppressor module.

This contactor supports mounting on DIN rail or directly on panels, providing flexibility in installation. The auxiliary contact configuration includes one normally open and one normally closed contact, with the NC contact certified as mirror-type. The contactor's dimensions are 85mm in height, 45mm in width, and 99mm in depth, and it weighs 0.365 kg.

Designed to meet stringent standards, the contactor is certified to UL, CSA, IEC, and other international standards, ensuring compliance and safety. It operates effectively under a wide temperature range of -40 to 60 °C, with the option for derating at higher temperatures. The mechanical durability is rated at 30 million cycles, affirming its reliability in demanding environments. For applications requiring specific environmental considerations, the contactor adheres to RoHS and REACh regulations, classifying it as a Green Premium product.
