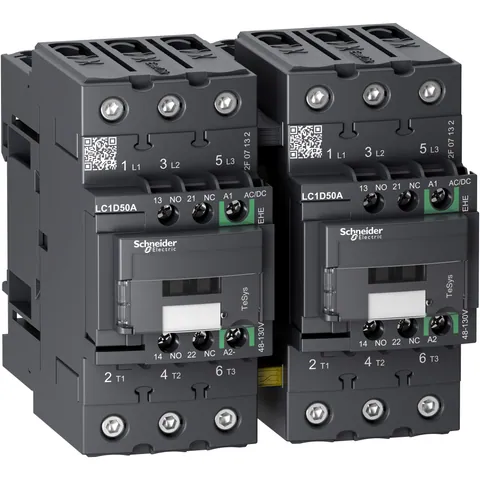

Schneider Electric LC2D50AEHE

The reversing contactor designed for motor control applications, operates with a rated current of 50A AC-3 at a maximum voltage of 440V, capable of handling loads up to 22kW at 400V. This model features a coil that operates within a voltage range of 48-130V AC/DC and is characterized by low power consumption.

Incorporating two normally open (NO) and two normally closed (NC) built-in auxiliary contacts, this contactor is equipped with a mechanical interlock to enhance safety and reliability. The mechanical interlock supports a pre-wired reversing circuit, ensuring operational integrity. It is also designed for DIN-rail and panel mounting, with a compact width of 119 mm and a depth of 120 mm.

Operational resilience is guaranteed with this unit, which can withstand mechanical shocks and vibrations, making it suitable for demanding environments. The contactor is certified to multiple international standards (IEC, UL, CSA, CCC, EAC, Marine), and it complies with environmental directives such as RoHS and REACH. The clear separation between power and control circuits facilitates straightforward access to connections, while the EverLink BTR screw terminals ensure a secure connection with consistent tightening pressure.

This product, designated as LC2D50AEHE, delivers high electrical durability, rated for 1.6 million switching cycles at 50A AC-3 440V, thereby supporting various motor control applications effectively.
