LXM28AU02M3X
1 / 2
Descrizione
Attivo maturo

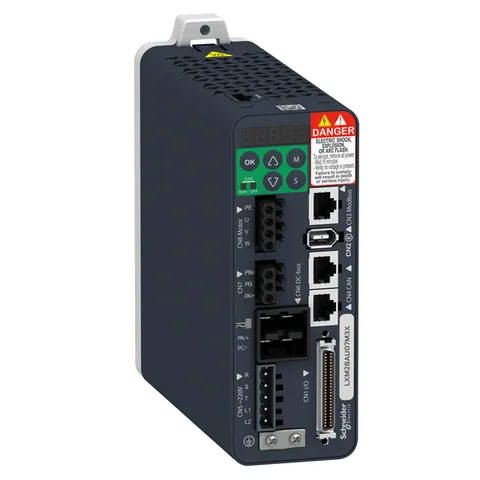

This product is part of the Lexium 28 range, an offer of servo drives from 0.05kW to 4.5kW. The motion servo drive features EMC filter, integrated CANopen, CAN motion interface 7-segment display with 5 buttons. It is a motion servo drive with a rated supply voltage of 220V (single and three phase), an output current of 4.5A, nominal power of 0.2kW and continuous power of 200W. It is furnished with spring terminal for electrical connection and RJ45 connectors (CN4) for CANopen/CAN motion. There is an electrical isolation between power/control. It offers CANopen and CAN motion communication interfaces and physical interface of RS485 for Modbus Serial line slave. It is an IP20 rated product. Its dimensions are 55mm (width) x 146mm (depth) x 150mm (height). It weighs 1kg. It is suitable for machine control solutions. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with servo motor BCH2 (60mm, 1 motor stack) at 200W. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.- Country of Origin
- CN
- Part Number
- LXM28AU02M3X
- Tariff Code
- 85371091
- EAN
- 3606480711770
- UNSPSC
- 39121021
Metodi di pagamento:
- Migliore offerta da:
Fornitore Automa.Net di fiducia- Disponibilità:
- 2 pz.DisponibileAggiornato il: 22-11-2024
- Garanzia:
- 12 mesi
- Consegna stimata:
- Su richiesta
- Condizione:
- Nuovo sigillato in fabbrica
Nuovo sigillato in fabbrica - Un articolo nuovo di zecca, inutilizzato, non aperto, non danneggiato, nella sua confezione originale sigillata dal produttore.
Informazioni sulla spedizione
Processo di Pagamento Sicuro
Politiche di Reso e Rimborso
Politiche di Spedizione
Politiche di Garanzia
Complementary
- [Us] Rated Supply Voltage
- 200...240 V - 10...15 %)three phase || 200...240 V - 20...15 %)single phase
- Network Frequency
- 47.5...63 Hz
- Type Of Cable
- shielded motor cable 0-55 °C) copper
- Absolute Accuracy Error
- 0.1 %
- Discrete Input Logic
- positive or negative CN1)
- Height
- 150 mm
- Output Current 3S Peak
- 4.5 A 220 V
- Electrical Isolation
- between power and control
- Physical Interface
- RS485 Modbus Serial line slave
- Product Compatibility
- servo motor BCH2 60 mm, 1 200 W
- Status Led
- 1 LED (Red) charge || 1 LED (Green) RUN || 1 LED (Red) error
- Discrete Output Number
- 5 logic output CN1)12...24 V DC || 1 pulse train output (PTO) CN1)
- Discrete Input Voltage
- 24 V DC logic
- Transmission Rate
- 250 kbit/s 100-250 m CANopen, CANmotion || 500 kbit/s 4-100 m CANopen, CANmotion || 1 Mbit/s 4-4 m CANopen, CANmotion
- Discrete Output Voltage
- 12...24 V DC
- Discrete Input Number
- 8 programmable CN1) || 1 pulse train input (PTI) CN1) || 2 fast capture CN1) || 1 safety function STO CN9)
- Signalling Function
- servo status and fault codes five 7-segment display units
- Marking
- CSA || cULus || CE
- Output Current 3S Peak 2
- 4.5 A 220 V
- Connector Type
- RJ45 CN4)CANopen, CANmotion
- Phase
- three phase || single phase
- Net Weight
- 1 kg
- Output Current 3S Peak 3
- 4.5 A 220 V
- Communication Interface
- CANopen, Integrated || CANmotion, Integrated
- Electrical Connection
- spring terminal 0.82...1 mm², AWG 18 L1-L2) || spring terminal 0.82...1 mm², AWG 18 R, S, T) || spring terminal 0.82...1 mm², AWG 18 U, V, W, PE) || spring terminal 0.82...1 mm², AWG 18 PA/+, PBe)
- Analogue Input Number
- 2
- Switching Frequency
- 16 kHz
- Discrete Output Logic
- positive or negative CN1)
- Type Of Cooling
- natural convection
- Supply Voltage Limits
- 200-255 V three phase || 170-255 V single phase
- Method Of Access
- slave
- Control Signal Type
- servo motor encoder feedback CN2
- Safety Function
- STO (safe torque off), Integrated
- Number Of Addresses
- 1-127 CANopen, CANmotion
- Output Voltage
- <= power supply voltage
- Operating Position
- vertical
- Emc Filter
- without EMC filter
- Maximum Leakage Current
- 1.3 mA
- Width
- 55 mm
- Overvoltage Category
- III
- Depth
- 146 mm
- Nominal Power
- 0.2 kW 220 V 16 kHz
- Continuous Output Current
- 1.5 A 16 kHz
- Protection Type
- against reverse polarity inputs signal || against short-circuits outputs signal || overcurrent motor || overvoltage motor || undervoltage motor || overheating motor || overload motor || overspeed motor
- Analogue Input Type
- V_REF voltage analog input - 10...10 V 10 kOhm 14 bits || T_REF voltage analog input
- Continuous Power
- 200 W 220 V
- Supply Frequency
- 50/60 Hz - 5...5 %
- Safety Level
- SIL 2 IEC 61800-5-2 2007 || SIL 2 IEC 61508-1 2010 || PL d/category 3 ISO 13849-1 2008 || SIL 2 ISO 13849-1 2009/AC || SIL 2 IEC 60204-1 2006 || SIL 2 IEC 60204-1 2009/A1 || SIL 2 IEC 60204-1 2010/AC || SIL 2 IEC 62061 2012
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1409001EN
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1409001EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- cULus || CSA || CE
- Ambient Air Temperature For Operation
- 0-55 °C
- Standards
- IEC 61800-5-1
- Electromagnetic Compatibility
- conducted emission - test level: level 3 category C3 conforming to IEC 61800-3
- Vibration Resistance
- 3M4 3 mm 9-200 Hz)IEC 60721-3-3
- Shock Resistance
- 10 gn, type I IEC 60721-3-3
- Ambient Air Temperature For Storage
- -25-65 °C
- Relative Humidity
- 5-95 % without condensation
- Ip Degree Of Protection
- IP20
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating || > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
Specifications
- Line Current
- 2.4 A 226.8 % 220 V, single phase || 2.4 A 200.7 % 220 V, three phase
- Range Of Product
- Lexium 28
- Format Of The Drive
- compact housing
- Product Or Component Type
- motion servo drive
- Device Short Name
- LXM28A
