Schneider Electric M9F22413

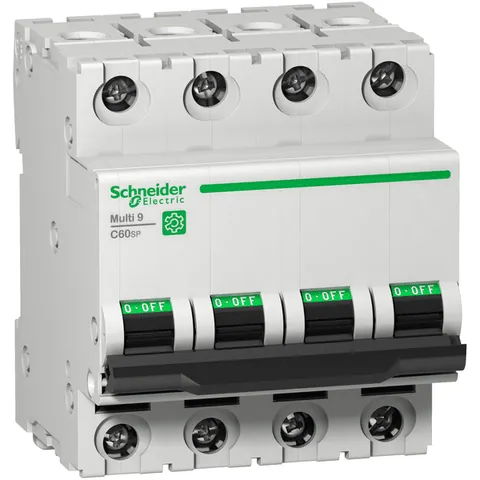

The Multi9 C60SP is a low voltage miniature circuit breaker (MCB) designed for robust electrical protection. It features a 4-pole configuration, handling a rated current of 13A with a C tripping curve. This device can interrupt short circuits with a breaking capacity of up to 10kA at 415VAC, in compliance with the EN/IEC 60947-2 standard.

Engineered for both industrial and residential applications, it adheres to the EN/IEC 60898-1 standard, ensuring safety against electrical faults such as short circuits and overloads. Its electrical endurance is rated for up to 10,000 cycles while the mechanical endurance reaches 20,000 cycles, making it suitable for frequent use.

This circuit breaker operates at an Ue voltage of 240VAC and can function efficiently within an ambient temperature range of -30°C to 70°C, with storage capabilities from -40°C to 80°C. The rated insulation voltage is 500VAC, and it can withstand impulse voltages up to 6kV. The device is mountable on a DIN rail and its dimensions are 72mm in width, 81mm in height, and 72mm in depth. The unit has an IP20 protection rating for its terminals, ensuring safety in various environments.

With a pollution degree of 3, the Multi9 C60SP is designed to offer reliable performance in diverse conditions. It features tunnel-type terminals for connections, accommodating wire sizes from 1 to 25 mm² for rigid conductors and 1 to 16 mm² for flexible conductors. The toggle control type allows for simple operation, and a local ON/OFF...
