Descrizione

Attivo maturo

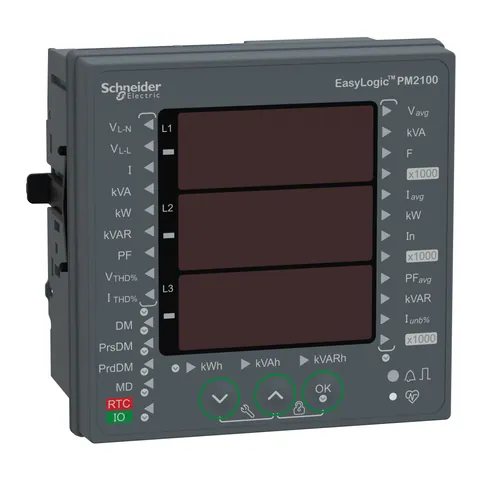

This device is a panel mount or flush mount power meter with a 96mm by 96mm bezel size having 3 rows of bright red 4 digits 14.2 mm height LED display. The meter measures active energy as per accuracy class Class 1.0 complying to IEC 62053-21 standard with sampling rate of 64 samples per cycle. Able to measures all three vectors of power and energy such as Active, Apparent & Reactive beside Voltages, Current, Frequency and Power Factor. Plus the total Harmonic Distortion for both current and volrage on per phase basis. The meter will function in either 50Hz or 60Hz network frequency and accepts universal control power voltages ranging from 44 to 300 V Line to Neutral AC or DC voltages. Rated current for this meter is either 1A or 5A input. it supports up to 13 different types of wiring schemes under Single Phase, Two Phase or Three Phase configuration types. The range of measurement voltage between Phases is 35 to 480 V Line to Line AC at 45 to 65 Hz while it is 20 to 277 V between Line and Neutral. The meter also has one digital pulse output for any energy parameters congigurable to different energy scaling. Product dimensions are as follows: width 3.78 in (96 mm), depth 2.16 in (54 mm), height 3.78 in (96 mm) and product weight 10.58 oz (300 g).
Country of Origin
IN
Part Number
METSEPM2110
Tariff Code
90283090
EAN
3606480800139
UNSPSC
41113708
Metodi di pagamento:
Migliore offerta da:
CZFornitore Automa.Net di fiducia
Disponibilità:
5 pz.
Disponibile
Aggiornato il: 15-01-2024
Garanzia:
12 mesi
Consegna stimata:
Su richiesta
Condizione:
Nuovo sigillato in fabbrica
Nuovo sigillato in fabbrica - Un articolo nuovo di zecca, inutilizzato, non aperto, non danneggiato, nella sua confezione originale sigillata dal produttore.
Un totale di 114 Parts In-Stock da 7 Distributors
Processo di Pagamento Sicuro
Politiche di Reso e Rimborso
Politiche di Spedizione
Politiche di Garanzia

Offerte Disponibili (6)

METSEPM2110 product image
Schneider Electric

METSEPM2110

Condizione:
Nuovo sigillato in fabbrica
Disponibile:
5 pz.
Disponibile
Aggiornato il: 05-04-2024
Offerta da:
ROFornitore Automa.Net di fiducia
Consegna stimata:
Su richiesta
Garanzia:
12 mesi
1
METSEPM2110 product image
Schneider Electric

METSEPM2110

Condizione:
Nuovo sigillato in fabbrica
Disponibile:
5 pz.
Disponibile
Aggiornato il: 30-04-2024
Offerta da:
GBFornitore Automa.Net di fiducia
Consegna stimata:
Su richiesta
1
METSEPM2110 product image
Schneider Electric

METSEPM2110

Condizione:
Nuove eccedenze
Disponibile:
81 pz.
Disponibile
Aggiornato il: 04-11-2024
Offerta da:
TRFornitore Automa.Net di fiducia
Consegna stimata:
Su richiesta
Garanzia:
12 mesi
1
€105.35
net
METSEPM2110 product image
Schneider Electric

METSEPM2110

Condizione:
Nuove eccedenze
Disponibile:
6 pz.
Disponibile
Aggiornato il: 04-11-2024
Offerta da:
TRFornitore Automa.Net di fiducia
Consegna stimata:
Su richiesta
Garanzia:
12 mesi
1
METSEPM2110 product image
Schneider Electric

METSEPM2110

Condizione:
Nuove eccedenze
Disponibile:
6 pz.
Disponibile
Aggiornato il: 25-10-2024
Offerta da:
GBFornitore Automa.Net di fiducia
Consegna stimata:
Su richiesta
Garanzia:
12 mesi
1
Offerta con tempi di consegna del produttore
Spedizione in:Su richiesta
Miglior prezzo:
Invia una richiesta di prezzo

Complementary

Network Frequency
60 Hz || 50 Hz
Output Voltage
20 ms 5...40 V DC, 20 mA 1...9999000 pulse/ k_h (kWh, kVAh, kVARh)
Power Quality Analysis
total harmonic distortion
Height
96 mm
Measurement Voltage
35-480 V AC 50/60 Hz between phases || 20-277 V AC 50/60 Hz between phase and neutral || 480-999000 V AC 50/60 Hz with external VT
Sampling Rate
64 samples/cycle
Maximum Power Consumption In W
3.3 W power lines (AC)) || 2 W 277 V power lines (DC))
Number Of Outputs
1 pulse
Product Certifications
CE IEC 61010-1 || cULus UL 61010-1 || cULus CSA C22.2 No 61010-1 || RCM || EAC || C-tick
Type Of Measurement
total current harmonic distortion THD (I) per phase || total voltage harmonic distortion THD (U) per phase || apparent energy total || active and reactive energy total || apparent power total || active and reactive power total || current average || voltage average || frequency average || power factor average
Communication Port Protocol
POP
Frequency Measurement Range
45-65 Hz
Communication Service
remote monitoring
Number Of Inputs
0
Material
polycarbonate
Net Weight
300 g
Tamperproof Of Settings
protected by access code
Provided Equipment
1 x Installation guide
Depth
total 76.09 mm || embedded 61.64 mm
Measurement Current
5-6000 mA
Messages Display Capacity
3 fields of 4 characters
Local Signalling
Red LED output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh) || Green LED module operating (RUN)
Connections - Terminals
current transformer screw connection bottom) 6 || voltage inputs screw connection top) 4
Information Displayed
demand current past value) || demand current present value) || demand power past value) || demand power present value) || voltage || current || frequency || energy consumption || harmonic distortion || power factor || active power || apparent power || reactive power || unbalanced in %
Electrical Insulation Class
double insulation || class II
Control Type
3 x button
Flame Retardance
V-0 conforming to UL 94
[Us] Rated Supply Voltage
44...277 V AC 45...65 Hz +/- 10 % || 44...277 V DC +/- 10 %
Impulse Duration
20 ms
Mounting Mode
clip-on
Measurement Accuracy
apparent power +/- 1 % || active energy +/- 1 % || reactive energy +/- 1 % || active power +/- 1 % || voltage +/- 0.5 % || power factor +/- 0.01 || current +/- 0.5 % || frequency +/- 0.05 %
Mounting Support
framework
Compatibility Code
PM2110
Refresh Time
configurable from 1 to 60 min
Line Rated Current
5 A || 1 A
Cybersecurity
enable/disable communication ports
Display Colour
red
Analogue Input Type
current (impedance <= 0.3 mOhm) || voltage (impedance > 5 MOhm)
Mounting Position
vertical
Width
96 mm
Display Type
7 segments LED
Measurement Category
category III 480-480 V || category II 480-600 V
Display Digits
12 - 14.2 mm
Device Application
power monitoring || sub billing
Metering Type
peak demand power PM, QM, SM || apparent power S, S1, S2, S3 || current I, I1, I2, I3 || reactive power Q, Q1, Q2, Q3 || calculated neutral current || voltage U, U21, U32, U13, V, V1, V2, V3 || peak demand currents || unbalance current || demand power P, Q, S || active power P, P1, P2, P3 || active, reactive, apparent energy (signed, four quadrant)
Accuracy Class
class 1 active energy IEC 62053-21 || class 1 reactive energy IEC 62053-24
Maximum Power Consumption In Va
6 VA 277 V AC

Environment

Ambient Air Temperature For Operation
-10-60 °C
Electromagnetic Compatibility
electrostatic discharge conforming to IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 || electrical fast transient/burst immunity test conforming to IEC 61000-4-4 || surge immunity test conforming to IEC 61000-4-5 || conducted RF disturbances conforming to IEC 61000-4-6 || magnetic field at power frequency conforming to IEC 61000-4-8 || voltage dips and interruptions immunity test conforming to IEC 61000-4-11 || emission tests conforming to FCC Part 15 class A
Pollution Degree
2
Ambient Air Temperature For Storage
-25-70 °C
Relative Humidity
5-95 % 50-50 °C
Service Life
7 year(s)
Ip Degree Of Protection
front IP54 IEC 60529 || body IP30 IEC 60529
Overvoltage Category
III
Operating Altitude
<= 6561.68 ft (2000 m)

Specifications

Product Or Component Type
power meter
Product Name
EasyLogic PM2100
Range
EasyLogic
Device Short Name
PM2110

Offer Sustainability

Rohs Exemption Information
Yes
Mercury Free
Yes
Environmental Disclosure
ENVPEP1510002
Sustainable Offer Status
Green Premium product
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation
X
Circularity Profile
ENVEOLI1510002EN
Eu Rohs Directive
Compliant with Exemptions
