Schneider Electric
NSYMF43

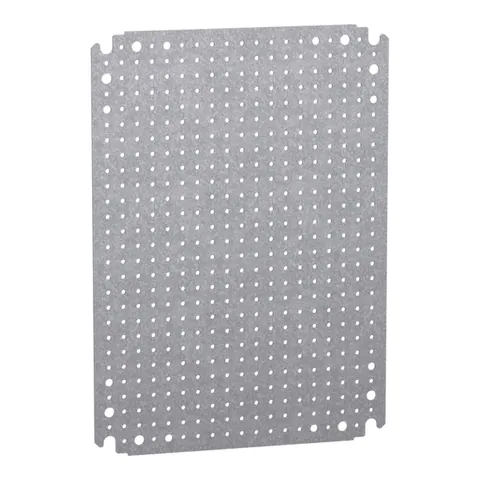

Microperforated mounting plate H300xW400 w/holes diam 3,6mm on 12,5mm pitch
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
€19.69
1
Metodi di pagamento:
Un totale di 106 Parts In-Stock da 16 Distributors
Condizioni del prodotto:
Offerta con tempi di consegna del produttore
Spedizione in:Su richiesta
Miglior prezzo:
€6.77
Additional Information
- Part Number
- NSYMF43
- UNSPSC
- 39121321
- Tariff Code
- 7326908688
- Country of Origin
- ES
Complementary
- Variant Particularity
- installation in enclosures with inverted dimensions
- Thickness
- 1.8 mm
- Net Weight
- 1.36 kg
- Depth
- 125 mm
- Fixing Mode
- screwed on backstuds M8 || by fixing element
- Permanent Permissible Load
- 60 kg
- Width
- 350 mm
- Height
- 250 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2202003EN
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- N/A
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Specifications
- Enclosure Nominal Dimensions
- H: 400 mm W: 300 mm || - H: 300 mm W: 400 mm
- Range Compatibility
- Spacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM
- Accessory / Separate Part Category
- mounting accessory
- Product Or Component Type
- mounting plate
- Range
- Spacial
- Mounting Location
- step slide || direct fixing on backstuds
- Material
- galvanised steel
- Quantity Per Set
- set of 1
- Device Application
- multi-purpose
- Mounting Plate Description
- microperforated
Contractual warranty
- Warranty
- 18 months
