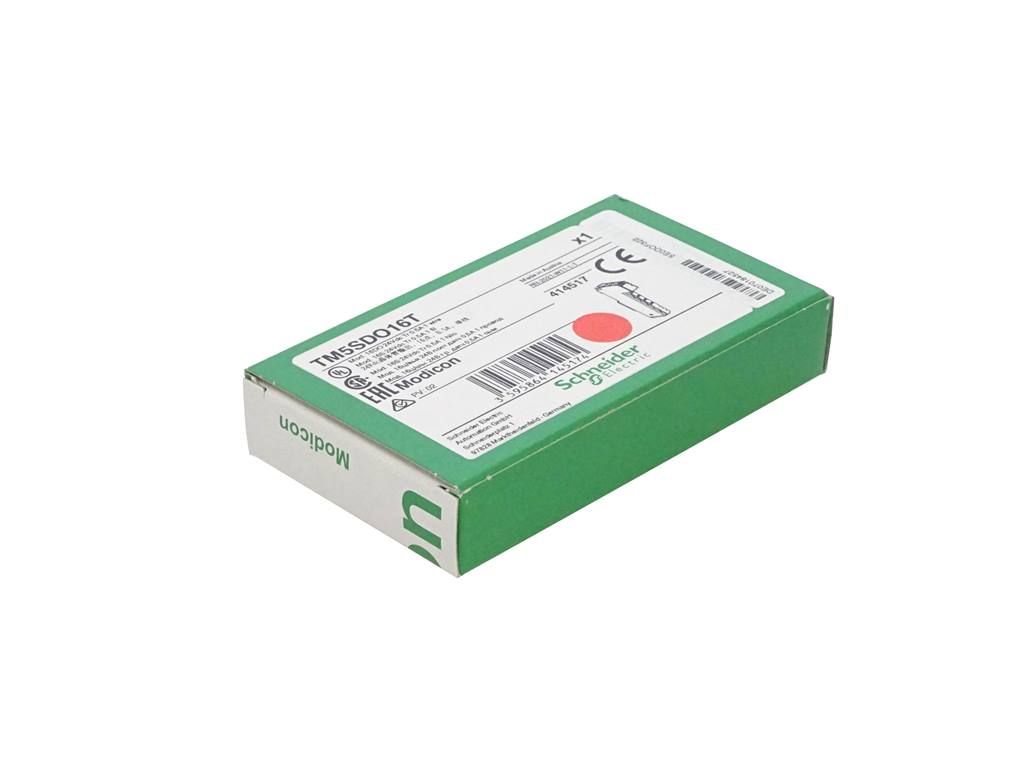

TM5SDO16T

Additional Information

Part Number

TM5SDO16T

UNSPSC

32151705

Tariff Code

8538908180

Country of Origin

AT

Complementary

Discrete Output Logic

source

Current Per Channel

0.5 A

Output Voltage

24 V DC

Maximum Current Per Output Common

8 A

Maximum Voltage Drop

<2 V at 500 mA sensor supply || <0.1 V at 500 mA output

Response Time

<= 300 µs from state 0 to state 1 output || <= 300 µs from state 1 to state 0 output

Marking

CE

Electrical Connection

1 wire

Net Weight

0.025 kg

Switching Frequency

<= 500 Hz resistive

Output Voltage Limits

20.4...28.8 V

Current Consumption

56 mA 5 V DC bus || 40 mA 24 V DC input/output

Color

White

Isolation

no insulation between channels || 500 Vrms AC insulation between channel and bus

Local Signalling

1 LED green/red power supply || 16 LEDs yellow output status

Maximum Supply Current For Sensors

500 mA

Protection Type

reverse polarity protection || overload protection || short-circuit protection

Peak Output Current

3 A

Range Compatibility

Modicon LMC058 || PacDrive LMC motion controller || Modicon M258

Product Compatibility

PacDrive LMC Pro || motion controller || PacDrive LMC Pro 2 || PacDrive LMC Eco || logic controller

Maximum Leakage Current

5 µA when switched off

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1511026EN

Sustainable Offer Status

Green Premium product

Pvc Free

Yes

Toxic Heavy Metal Free

Yes

Reach Regulation

Free of Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Reach Free Of Svhc

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

ENVEOLI1511026EN

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Environment

Product Certifications

CSA || cULus || C-tick || GOST-R

Standards

IEC 61131-2 || UL 508 || CSA C22.2 No 213 || CSA C22.2 No 142

Storage Altitude

0-3000 m

Electromagnetic Compatibility

electrostatic discharge immunity test, 4 kV on contact IEC 61000-4-2 || electrostatic discharge immunity test, 8 kV in air IEC 61000-4-2 || susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz IEC 61000-4-3 || susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz IEC 61000-4-3 || electrical fast transient/burst immunity test, 1 kV I/O IEC 61000-4-4 || electrical fast transient/burst immunity test, 1 kV shielded cable IEC 61000-4-4 || electrical fast transient/burst immunity test, 2 kV power lines IEC 61000-4-4 || 1.2/50 µs shock waves immunity test, 0.5 kV differential mode IEC 61000-4-5 || 1.2/50 µs shock waves immunity test, 1 kV common mode IEC 61000-4-5 || conducted RF disturbances IEC 61000-4-6 || conducted and radiated emissions CISPR 11

Ambient Air Temperature For Operation

-10-55 °C without derating horizontal installation) || -10-60 °C with derating factor horizontal installation) || -10-50 °C vertical installation)

Ip Degree Of Protection

IP20IEC 61131-2

Vibration Resistance

1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail

Shock Resistance

15 gn 11 ms

Pollution Degree

2 IEC 60664

Ambient Air Temperature For Storage

-40-70 °C

Relative Humidity

5-95 % without condensation

Operating Altitude

0...6561.68 ft (0...2000 m)

Specifications

Discrete Output Type

transistor

Range Of Product

Modicon TM5

Product Or Component Type

discrete output module

Discrete Output Number

16
