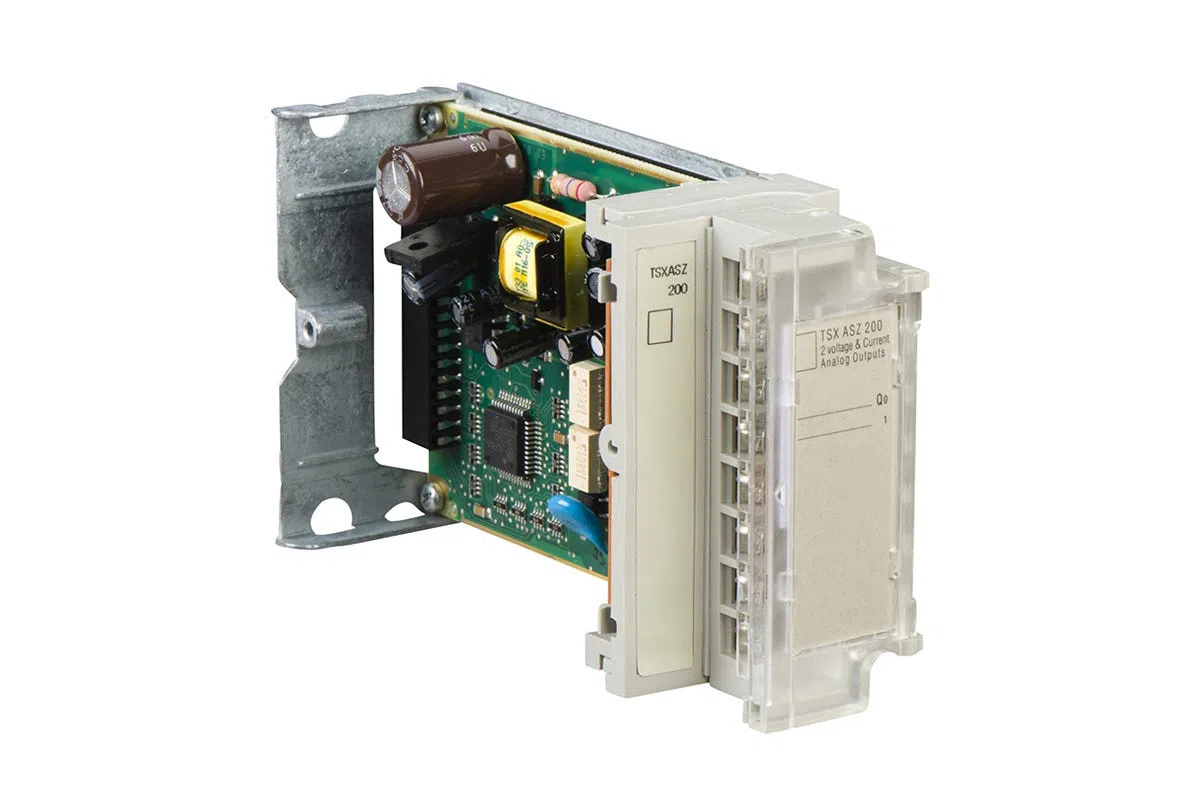

Schneider Electric TSXASZ200

This Analog Output Module, part of the Modicon TSX Micro automation platform, is designed for integration within programmable logic controller (PLC) systems. It supports two channels with an analogue output range of either 0 to 20 mA or 4 to 20 mA, as well as ±10 V. The device provides an 11-bit analogue/digital conversion with a measurement resolution specific to these output types.

Current consumption is rated at 150 mA, and the module features a protection type that safeguards against open-circuit scenarios for the current outputs. With a weight of 0.2 kg and an isolation voltage of 1500 V AC, this module is engineered for reliable operation in infrastructures and manufacturing control environments. It also accommodates a temperature drift of 0.107% per 10 °C for current outputs and 0.083% per 10 °C for voltage outputs, ensuring stable performance under varying thermal conditions. The product has been designed to enhance system performance and productivity.
