Schneider Electric XS630B4MAU20

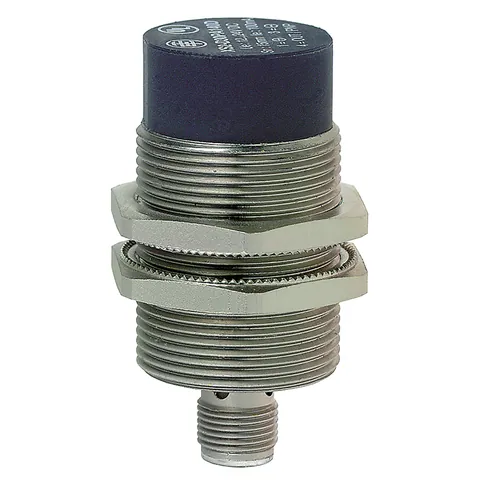

The XS6 M30 inductive proximity sensor is designed for the non-contact detection of metallic objects up to 60mm. Utilizing an oscillating electromagnetic field, it effectively identifies any metal object entering its detection zone. This sensor features a cylindrical design with dimensions of 74mm in length and a diameter of 30mm, constructed of nickel-plated brass, ensuring durability in various applications.

With a nominal sensing distance of 22mm, the sensor supports a normally open 2-wire discrete output and operates at a switching frequency of up to 300Hz for DC voltage and 25Hz for AC voltage. It functions within a temperature range from -25°C to +70°C and is rated for protection classes IP67 and IP69K, making it suitable for environments with exposure to dust and water jets.

The device is certified by UL and CSA, reflecting its compliance with industry standards. It is particularly well-suited for applications in railway systems, mobile equipment, lifts and escalators, hoisting, material handling, machine tools, packaging, food and beverage sectors, as well as robotics. The Designation Code of this product highlights its general-purpose use, where the absence of physical contact during detection is a significant advantage.
