Schneider Electric XUSL4E2BB051L

The product falls within the XUSL range, consisting of safety light curtains specifically for body protection. It is equipped with two beams positioned 500 mm apart, providing a protection height of 510 mm. This unit supports two safety outputs (OSSD) rated at 0.4A, utilizing solid-state PNP technology with arc suppression. The operational sensing distances range from 0 to 10 m or 3 to 20 m, depending on the configuration.

Utilizing IR LED emission technology at a wavelength of 950 nm, the effective aperture angle measures 25° at 3 m. The device is rated IP65 and IP67, ensuring protection against dust and water ingress. It operates on a supply voltage of 24V DC and draws a rated operational current of 2A. The unit is fitted with a 5-pin M12 male connector for the transmitter and an 8-pin M12 male connector for the receiver, facilitating straightforward electrical connections.

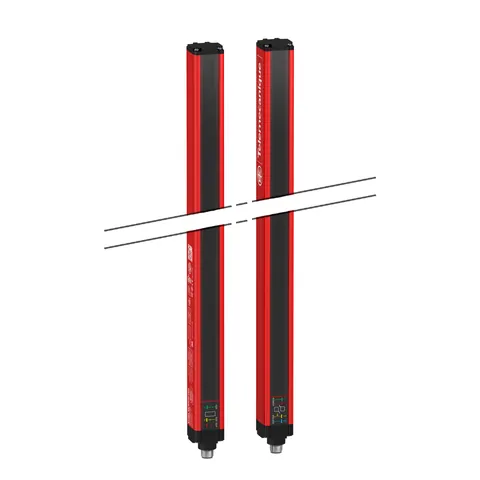

The casing features a red aluminum body, complemented by a polycarbonate front panel and polypropylene end caps. Dimensions are 29.4 mm in width, 31 mm in depth, and 653 mm in height, with a total weight of 1.1 kg. This safety curtain is intended for use with hazardous machinery requiring protective zones for operator safety. The installation requires precise alignment of the transmitter and receiver optical surfaces for optimal functionality.

It provides a stop signal rather than a control instruction, ensuring that any moving components within the protected zone are halted when one of the light beams...
