Schneider Electric

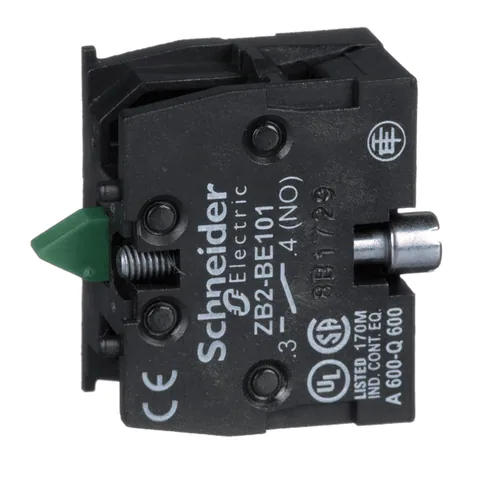

ZB2BE101
Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
€2.40
1
Metodi di pagamento:
Un totale di 8.631 Parts In-Stock da 49 Distributors
Condizioni del prodotto:
Offerta con tempi di consegna del produttore
Spedizione in:Su richiesta
Miglior prezzo:
€1.93
Additional Information
- Part Number
- ZB2BE101
- UNSPSC
- 39121522
- Tariff Code
- 8536509065
- Country of Origin
- MX
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Standards
- EN/IEC 60947-5-1 || UL 508 || EN/IEC 60204-32 || CSA C22.2 No 14
- Vibration Resistance
- 15 gn 10-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Operating Force
- 13-15 N
- Terminals Description Iso N°1
- (13-14)NO
- Maximum Resistance Across Terminals
- 25 MOhm
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Short-Circuit Protection
- 10 A fuse protection cartridge gG (gl)
- Net Weight
- 0.02 kg
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Connections - Terminals
- screw clamps terminals, 1 x 2.5 mm² with or without cable end || screw clamps terminals, 2 x 1.5 mm² with or without cable end
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Mechanical Durability
- 1000000 cycles
- Contact Code Designation
- A600 AC-15, Ue = 240 V, Ie = 3 A IEC 947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 947-5-1 appendix A
- Rated Operational Power In W
- 40 W DC-13 1000000 cycles 3600 cyc/h 120 V 0.5 IEC 60947-5-1 || 48 W DC-13 1000000 cycles 3600 cyc/h 48 V 0.5 IEC 60947-5-1 || 65 W DC-13 1000000 cycles 3600 cyc/h 24 V 0.5 IEC 60947-5-1
Specifications
- Mounting Of Block
- front mounting
- Range Of Product
- Harmony XAC
- Contact Block Type
- single
- Product Or Component Type
- contact block
- Contact Block Application
- single speed
- Component Name
- ZB2
- Contacts Type And Composition
- 1 NO
- Contact Operation
- slow-break
- Type Of Operator
- spring return
- Electrical Circuit Type
- control circuit
- Product Compatibility
- XB4 || XAPS2 || XACA || XB5
