Schneider Electric
ZB4BD912
1 / 5
Descrizione
Attivo maturo

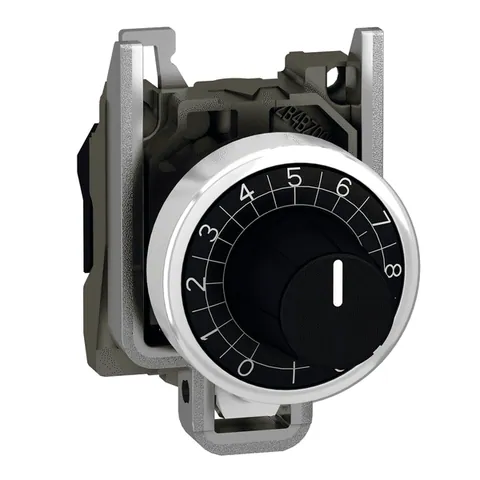

This Harmony XB4, head and mounting base is used for potentiometer application. This head and mounting base for potentiometer provides an ergonomic external interface for controlling your machines thanks to its knurled knob head. It is ideal for controlling key parameters of automation components like drives and inverters and is easily installed and replaced on compatible potentiometers. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.- Country of Origin
- FR
- Part Number
- ZB4BD912
- Tariff Code
- 85339000
- EAN
- 3389110896879
- UNSPSC
- 39122221
€28.13
net€29.00
Spedizione da:
€19.00
1
Metodi di pagamento:
- Migliore offerta da:
Fornitore Automa.Net di fiducia- Disponibilità:
- 2 pz.DisponibileAggiornato il: 22-11-2024
- Garanzia:
- 12 mesi
- Consegna stimata:
- 25-26 novembre a Regno Unito
- Condizione:
- Nuove eccedenze
Nuove eccedenze - Un articolo nuovo, inutilizzato e non danneggiato senza garanzia del produttore. L'articolo può arrivare senza confezione originale o in una confezione sostitutiva. Se fornita, la scatola potrebbe essere stata aperta.
Informazioni sulla spedizione
Processo di Pagamento Sicuro
Politiche di Reso e Rimborso
Politiche di Spedizione
Politiche di Garanzia
Environment
- Product Certifications
- LROS (Lloyds register of shipping) || CSA || BV || GL || DNV || UL Listed
- Ik Degree Of Protection
- IK03 IEC 50102
- Ambient Air Temperature For Operation
- -40-70 °C
- Standards
- UL 508 || IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-5 || JIS C8201-1
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP66 IEC 60529
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Electrical Shock Protection Class
- class I IEC 60536
- Protective Treatment
- TH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1808008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Shape Of Signaling Unit Head
- round
- Net Weight
- 0.08 kg
- Device Presentation
- basic element
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Operator Profile
- knurled knob, with white)
Specifications
- Range Of Product
- Harmony XB4
- Mounting Diameter
- 22 mm
- Product Or Component Type
- head + mounting base for potentiometer
- Head Type
- standard
- Sale Per Indivisible Quantity
- 1
- Bezel Material
- chromium plated metal
- Product Compatibility
- for use with Ø 6 mm shaft
- Device Short Name
- ZB4
