Schneider Electric ZCMD25L5

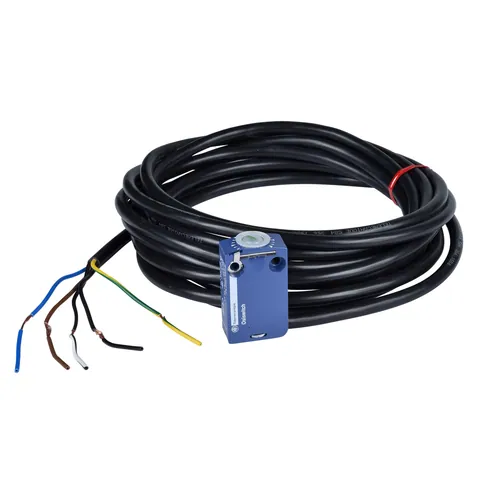

The limit switch body ZCMD is designed with a durable zamak construction and features 1 normally closed (NC) and 1 normally open (NO) contact with a slow-break operation. With a pre-cabled length of 5 meters, it allows for flexible installation. It is compatible with a variety of heads, actuators, or connectors from the XCKD, XCKP, and XCKT ranges.

This miniature device supports a range of electrical durability ratings, achieving up to 5,000,000 cycles at various operational voltages (DC-13 120 V, 24 V, and 48 V). Its electrical connection is facilitated by a removable cable, ensuring ease of maintenance. The switch also includes silver-plated contacts and has a rated insulation voltage of up to 400 V, complying with IEC standards.

Furthermore, the ZCMD limit switch body is designed to operate in ambient temperatures ranging from -40 °C to 70 °C, making it suitable for various industrial applications. With a compact profile, measuring 50 mm in height, 30 mm in width, and 16 mm in depth, this component provides a reliable solution for control systems. The product is categorized under the Telemecanique Limit switches XC Standard series.
