Schneider Electric
ZCMD39L5

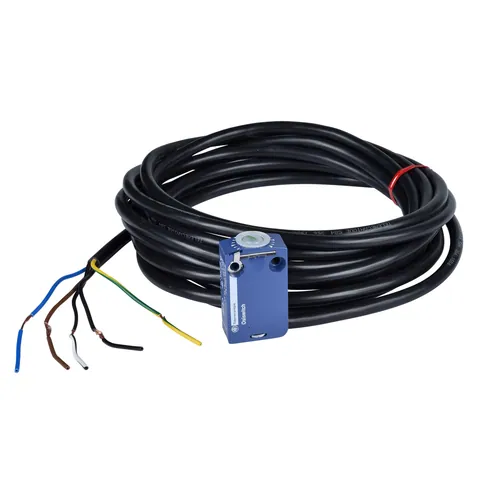

Limit switch body, Limit switches XC Standard, ZCMD, 2NC+1 NO, silver, snap action, connection, 5 m
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
Invia una richiesta di prezzo
1
Metodi di pagamento:
Un totale di 4 Parts In-Stock da 10 Distributors
Condizioni del prodotto:
Offerta con tempi di consegna del produttore
Spedizione in:Su richiesta
Miglior prezzo:
Invia una richiesta di prezzo
Additional Information
- Part Number
- ZCMD39L5
- UNSPSC
- 39122213
- Tariff Code
- 8538908140
- Country of Origin
- ID
Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Associated Head
- ZCE10 || ZCE66 || ZCE29 || ZCEG1 || ZCE64 || ZCE65 || ZCE02 || ZCE62 || ZCEF0 || ZCE11 || ZCE14 || ZCE06 || ZCE09 || ZCE27 || ZCE63 || ZCE28 || ZCEF2 || ZCE67 || ZCE24 || ZCE21 || ZCE13 || ZCE01 || ZCE07 || ZCE08
- Product Or Component Type
- limit switch body
- Design
- miniature
- Series Name
- standard format
- Contacts Type And Composition
- 2 NC + 1 NO
- Body Type
- fixed
- Contact Operation
- snap action
- Body Material
- zamak
- Device Short Name
- ZCMD
- Number Of Poles
- 3
Contractual warranty
- Warranty
- 18 months
Complementary
- Height
- 50-50 mm
- Short-Circuit Protection
- 6 A cartridge fuse gG
- Minimum Actuation Speed
- 0.01 m/min
- Electrical Connection
- removable cable
- Contacts Material
- silver plated contacts
- Cable Length
- 5 m
- Net Weight
- 0.065 kg
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60664 || 4 kV IEC 60947-1
- Electrical Durability
- 5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- [Ui] Rated Insulation Voltage
- 300 V 3)UL 508 || 400 V 3)IEC 60947-5-1 || 300 V 3)CSA C22.2 No 14
- Positive Opening
- with
- Contacts Insulation Form
- Zb
- Wire Insulation Material
- PvR
- Cable Composition
- 7 x 0.5 mm²
- Width
- 30 mm
- Depth
- 16 mm
- Product Compatibility
- XCMD
- Maximum Resistance Across Terminals
- 25 mOhm IEC 60255-7 category 3
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP110612EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Circularity Profile
- ENVEOLI110612EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
