Schunk
303541

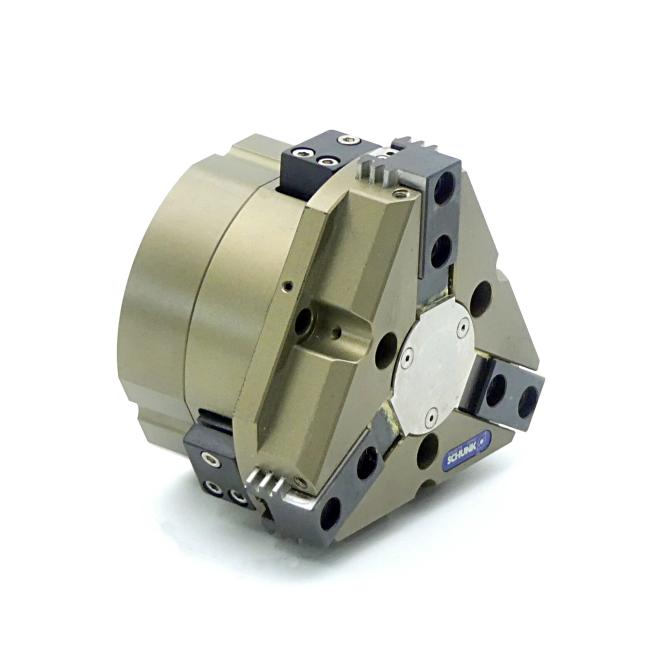

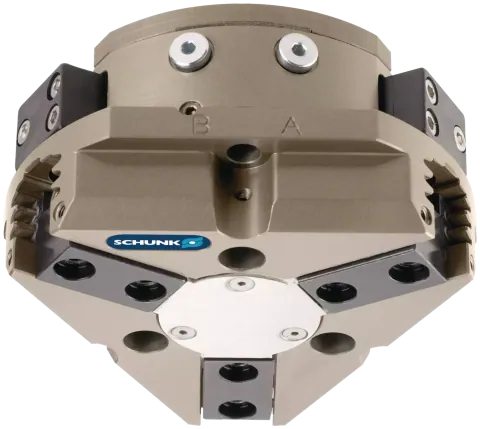

Universal gripper PZN-plus, Size: 80, pneumatic, with gripping force maintenance: IS - PZN-plus 80-1-IS
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
€829.40
1
Metodi di pagamento:
Un totale di 2 Parts In-Stock da 1 Distributor
Condizioni del prodotto:
Additional Information
- Part Number
- 303541
Specifications
- Stroke per jaw
- 8 mm
- Opening force
- 1450 N
- Opening force (with finger lengths of 0 mm)
- 1701 N
- Min. spring force
- 370 N
- Weight
- 0.96 kg
- Recommended workpiece weight
- 5 kg
- Fluid consumption double stroke
- 108 cm³
- Min. operating pressure
- 4 bar
- Max. operating pressure
- 6.5 bar
- Nominal operating pressure
- 6 bar
- Min. air purge pressure
- 0.5 bar
- Max. air purge pressure
- 1 bar
- Closing time
- 0.06 s
- Opening time
- 0.04 s
- Closing/opening time with spring
- 0.19 s
- Max. permissible finger length
- 105 mm
- Max. permissible weight per finger
- 0.6 kg
- IP protection class
- 40
- Min. ambient temperature
- 5 °C
- Max. ambient temperature
- 90 °C
- Repeat accuracy
- 0.01 mm
- Cleanroom class ISO 14644-1
- 5

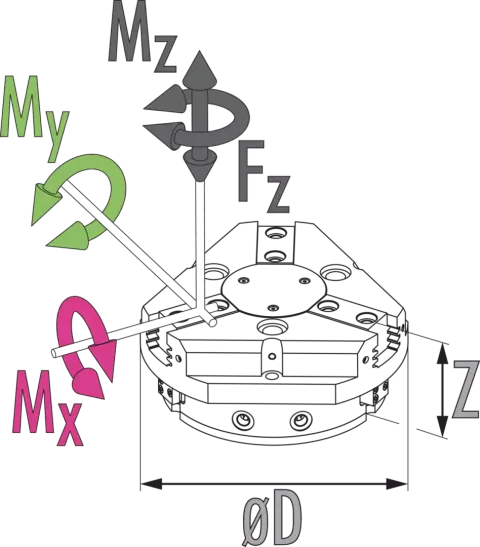

- Diameter D
- 96 mm
- Height Z
- 64.3 mm
- Moment Mx max.
- 60 Nm
- Moment My max.
- 95 Nm
- Moment Mz max.
- 55 Nm
- Max. axial force Fz max.
- 1500 N
