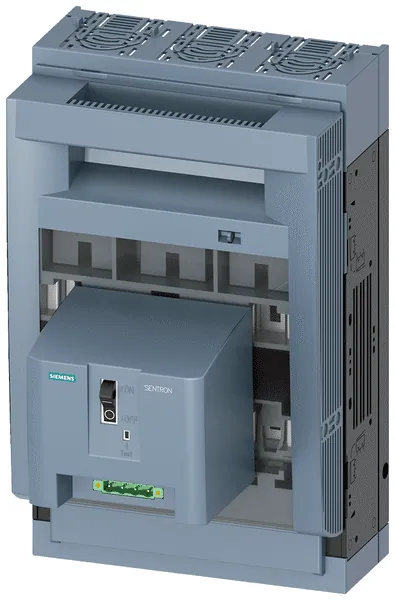

Siemens
3NP1143-1DA11
SW DISC 3NP 250A FLT TRML SZ1 MFM 70CVR
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
€187.75
1
Metodi di pagamento:
Un totale di 58 Parts In-Stock da 18 Distributors
Condizioni del prodotto:
Offerta con tempi di consegna del produttore
Spedizione in:Su richiesta
Miglior prezzo:
€176.90
Additional Information
- Part Number
- 3NP1143-1DA11
- UPC
- 754554966861
- Tariff Code
- 8536509065
Specifications
- Country of Origin
- DE
- Cable entry
- Other
- Number of poles
- 3
- With error protection
- true
- Suitable for fuses
- NH0, NH1
- Version as safety switch
- true
- Rated permanent current Iu
- 250 A
- Suitable for ground mounting
- true
- Type of control element
- Cover grip
- Position control element
- Front side
- Max. rated operation voltage Ue AC
- 690 V
- Degree of protection (IP), front side
- IP40
- Conditioned rated short-circuit current Iq
- 80 kA
- Type of electrical connection of main circuit
- Rail connection
