3RB2283-4AA1

1 / 2

Descrizione

AttivoConforme a RoHS

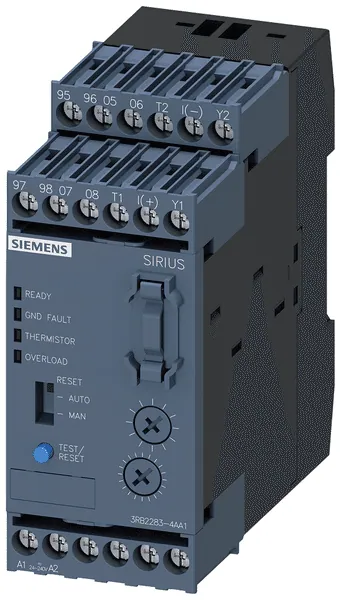

Processing unit for full motor protection size s00...s12, class 5...30 stand-alone installation main circuit -- aux. circuit screw connection manual-automatic-reset

Country of Origin: DE
Part Number: 3RB2283-4AA1
Tariff Code: 85364900
EAN: 4011209641983
UPC: 040892553680

ETIM

Group Code : EG000017

Group Description : Low-voltage Industrial Components

Class Description : Electronic overload relay

Class Code : EC001080

Version : 7

€182.50

net

€202.78

Spedizione Gratuita!

1

Metodi di pagamento:

Migliore offerta da:: Fornitore Automa.Net di fiducia
Disponibilità:: 2 pz.
Disponibile
Aggiornato il: 22-11-2024
Garanzia:: 12 mesi
Consegna stimata:: 27-29 novembre a Regno Unito
Condizione:: Nuovo sigillato in fabbrica

Nuovo sigillato in fabbrica - Un articolo nuovo di zecca, inutilizzato, non aperto, non danneggiato, nella sua confezione originale sigillata dal produttore.

Informazioni sulla spedizione

Processo di Pagamento Sicuro

Politiche di Reso e Rimborso

Politiche di Spedizione

Politiche di Garanzia

Specifications

Country of Origin: DE
Type of actuation: AC
Assembly type: Miscellaneous
Description of product type: 3RB22
Number of auxiliary contacts as opener: 2
Number of auxiliary contacts as shutter: 2
Max. rated DC voltage for controls: 240 volt
Min. rated control voltage Us with DC: 24 volt
Lowest value adjustable current range: 0.3 ampere
Greatest value adjustable current range: 630 ampere
Max. rated AC voltage for controls, 50 Hz: 240 volt
Max. rated AC voltage for controls (60 Hz): 240 volt
Min. rated control voltage Us with AC 50 Hz: 24 volt
Min. rated control voltage Us with AC 60 Hz: 24 volt
Power loss per pole, current-dependent [PlIp]: 0.17 watt
