Siemens
3RK1395-6KS41-3AD0
M200D, No Comm, Mech, 0.15-2A, Rev, Ctl
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
$795.15
1
Metodi di pagamento:
Un totale di 1 Part In-Stock da 15 Distributors
Condizioni del prodotto:
Offerta con tempi di consegna del produttore
Spedizione in:Su richiesta
Miglior prezzo:
€526.68
Descrizione
AttivoConforme a RoHS

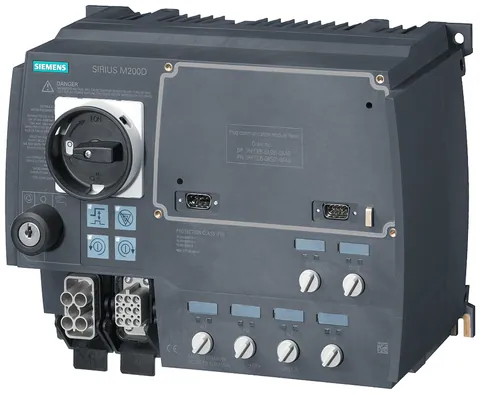

SIRIUS motor starter M200D Technology module Reversing starter Mechanical switching AC-3, 0.75KW / 400 V 0.15 A...2.00 A Electronic overload protection Thermistor: THERMOCLICK / PTC without brake contact 4 DI / 2 DO Han Q4/2 - Han Q8/0 with manual on-site operation and key-operated switch via communication module 3RK1305* can be used on PROFIBUS or PROFINETAdditional Information
- Part Number
- 3RK1395-6KS41-3AD0
- UPC
- 662643544527
- Tariff Code
- 8536504000
- Country of Origin
- DE
Specifications
- Depth
- 148 mm
- Width
- 294 mm
- Height
- 215 mm
- Release class
- Other
- External reset possible
- true
- Number of command positions
- 4
- Number of indicator lights
- 12
- Rated operation current Ie
- 2 A
- Voltage type for actuating
- DC
- Degree of protection (IP)
- IP65
- Degree of protection (NEMA)
- 12
- With short-circuit release
- true
- Supporting protocol for PROFIBUS
- true
- Overload release current setting
- 0.15 A
- Kind of motor starter
- Reversing starter
- Supporting protocol for PROFINET IO
- true
- Country of Origin
- DE
- Rated operation current at AC-3, 400 V
- 2 A
- Rated power, 460 V, 60 Hz, 3-phase
- 0.75 kW
- Rated control supply voltage Us at DC
- 20.4 V
- Rated operation power at AC-3, 400 V
- 0.75 kW
- Temperature compensated overload protection
- true
- Type of electrical connection of main circuit
- Other
- Ambient temperature, upper operating limit
- 40 °C
- Rated operation power at AC-3, 230 V, 3-phase
- 0.37 kW
- Coordination class according to IEC 60947-4-3
- Class 2
- Number of auxiliary contacts as normally open contact
- 0
- Number of auxiliary contacts as normally closed contact
- 0
- Rated conditional short-circuit current, type 2, 230 V
- 50000 A
- Rated conditional short-circuit current, type 2, 400 V
- 50000 A
- Rated conditional short-circuit current, type 1, 480 Y/277 V
- 50000 A
- Type of electrical connection for auxiliary- and control current circuit
- Other
