Siemens
3RV2011-0EA10
MSP S00 0.28-0.4A SCREW
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
£12.65
1
Metodi di pagamento:
Un totale di 916 Parts In-Stock da 59 Distributors
Condizioni del prodotto:
Offerta con tempi di consegna del produttore
Spedizione in:Su richiesta
Miglior prezzo:
€25.21
Descrizione
AttivoConforme a RoHS

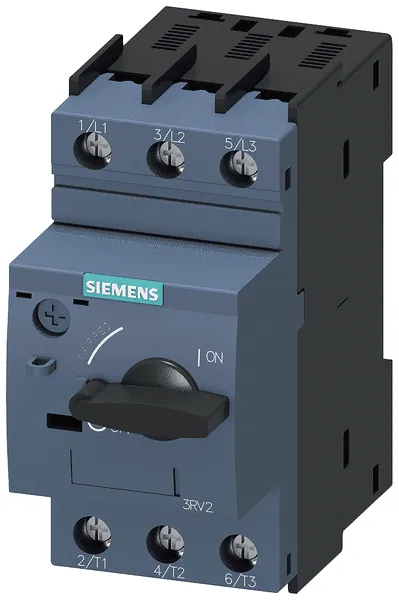

Circuit-breaker sz s00, for motor protection, class 10, a-rel. 0.28...0.4a, n-release5.2a, screw connection, standard sw. capacityAdditional Information
- Part Number
- 3RV2011-0EA10
- UPC
- 662643921489
- Tariff Code
- 8536304000
- Country of Origin
- DE
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Motor protection circuit-breaker
- Class Code : EC000074
- Version : 7
Specifications
- Pole number
- 3
- Manner of using
- Toggle
- Protection type IP
- IP20
- Release system
- magnetic
- Sensitive to phase failure
- true
- Connection type
- Screw connection
- Description of product type
- 3RV2
- Rated permanent current Iu
- 0 ampere
- Max. rated operating voltage
- 690 volt
- Min. rated operating voltage
- 690 volt
- Number of auxiliary contacts as opener
- 0
- Number of auxiliary contacts as shutter
- 0
- Country of Origin
- DE
- Rated operating power with AC-3, 230 V
- 0 kilowatt
- Rated operating power with AC-3, 400 V
- 0 kilowatt
- Power loss per pole, current-dependent [PlIp]
- 1.8 watt
- Rated current [In] for the power loss specification
- 0 ampere
- Greatest value of overload release adjustment range
- 0.4 ampere
- Lowest value of setting range for overload tripper
- 0.28 ampere
- Rated service short-circuit breaking capacity Ics at 400 V, 50 Hz
- 100000 ampere
