Siemens

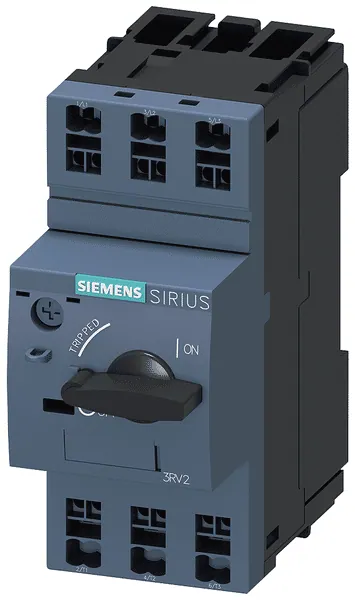

3RV2411-1KA20
MSP S00 FOR XFRMR 9-12.5A SPRING
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
€36.10
1
Metodi di pagamento:
Un totale di 10 Parts In-Stock da 20 Distributors
Condizioni del prodotto:
Offerta con tempi di consegna del produttore
Spedizione in:Su richiesta
Miglior prezzo:
€36.70
Descrizione
AttivoConforme a RoHS
CIRCUIT-BREAKER SZ S00, FOR TRANSFORMER PROT. A-RELEASE 9...12.5A, N-RELEASE 260A SPRING-L. CONNECTION, STANDARD SW. CAPACITYAdditional Information
- Part Number
- 3RV2411-1KA20
- UPC
- 662643922493
- Tariff Code
- 8536308000
- Country of Origin
- DE
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Power circuit-breaker for trafo/generator/installation protection
- Class Code : EC000228
- Version : 7
Specifications
- Number of poles
- 3
- Rated voltage
- 20 V
- Degree of protection (IP)
- IP20
- Type of control element
- Toggle
- Rated permanent current Iu
- 12.5 A
- Overload release current setting
- 9 A
- Complete device with protection unit
- true
- DIN rail (top hat rail) mounting optional
- true
- Adjustment range undelayed short-circuit release
- 260 A
- Number of auxiliary contacts as change-over contact
- 0
- Position of connection for main current circuit
- Other
- Number of auxiliary contacts as normally open contact
- 0
- Country of Origin
- DE
- Number of auxiliary contacts as normally closed contact
- 0
- Device construction
- Built-in device fixed built-in technique
- Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
- 100 kA
- Type of electrical connection of main circuit
- Spring clamp connection
