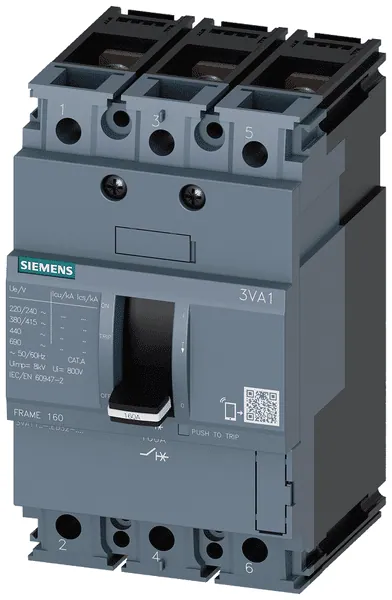

Siemens 3VA1110-6ED32-0AA0

The 3VA11 circuit breaker is designed for low voltage applications, adhering to IEC standards. It incorporates a thermal-magnetic trip unit with a rated current of 100A, providing effective line protection. The device features a high breaking capacity of 70kA at 415V, ensuring robust performance in demanding environments. With dimensions of 3 inches in width, 5.1 inches in height, and 3.5 inches in depth, it is suitable for various installations.

This model includes a fixed overload protection setting (Ir) of 100A and a short-circuit protection level (Ii) of 10 times the rated current. The connection is facilitated by a lug terminal and a nut keeper kit, enhancing installation efficiency. The integrated design is built for fixed installation, with a front-side main current circuit connection.

Further specifications include an IP40 degree of protection, making it appropriate for indoor use. The circuit breaker does not include integrated earth fault protection or under-voltage release, ensuring simplicity in design while maintaining essential safety features.
