Siemens

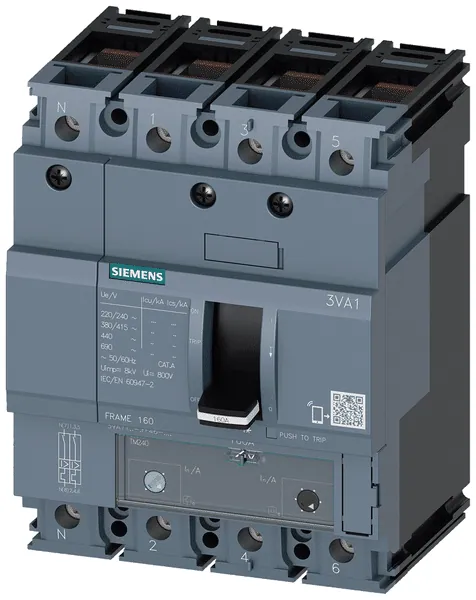

3VA1180-4GF46-0AA0
BRKR 3VA11 4P 80A 36KA ATAM100NTRL BOX
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
€156.22
1
Metodi di pagamento:
Un totale di 4 Parts In-Stock da 15 Distributors
Condizioni del prodotto:
Offerta con tempi di consegna del produttore
Spedizione in:Su richiesta
Miglior prezzo:
€116.99
Additional Information
- Part Number
- 3VA1180-4GF46-0AA0
- UPC
- 804766423109
- Tariff Code
- 8536200020
- Country of Origin
- CZ
Specifications
- Number of poles
- 4
- Country of Origin
- CZ
- Rated voltage
- 690 V
- Motor drive optional
- true
- Degree of protection (IP)
- IP40
- Rated permanent current Iu
- 80 A
- Overload release current setting
- 56 A
- Type of control element
- Rocker lever
- Complete device with protection unit
- true
- DIN rail (top hat rail) mounting optional
- true
- Suitable for DIN rail (top hat rail) mounting
- true
- Adjustment range undelayed short-circuit release
- 400 A
- Number of auxiliary contacts as change-over contact
- 0
- Number of auxiliary contacts as normally open contact
- 0
- Number of auxiliary contacts as normally closed contact
- 0
- Type of electrical connection of main circuit
- Frame clamp
- Position of connection for main current circuit
- Front side
- Device construction
- Built-in device fixed built-in technique
- Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
- 36 kA
