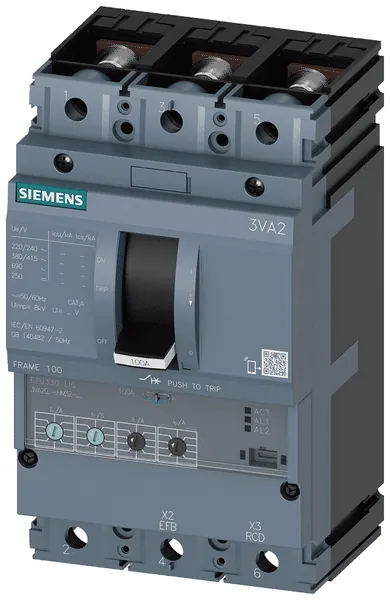

Siemens 3VA2025-5HM32-0AA0

The 3VA20 3-pole molded case circuit breaker is engineered for low voltage applications, offering reliable line protection with a rated current of 25A. It features a medium breaking capacity (class M), with an Icu rating of 55kA at 415V and 2kA at 690V. The device incorporates an ETU330 electronic trip unit for enhanced overload and short-circuit protection, adjustable between 1.5 to 12 times the rated current for short-circuit protection and 0.6 to 1 times for ground-fault protection.

With dimensions of 4.1 x 7.1 x 4.2 inches, the circuit breaker is designed for built-in installation and can accommodate DIN rail mounting. It has an IP40 degree of protection, ensuring suitability for various industrial environments. The device includes features such as a rocker lever control element and an integrated earth fault protection system, but does not have an integrated under voltage release.

Special features include connection with a lug terminal and a nut keeper kit, enhancing installation flexibility. The circuit breaker is constructed to meet high standards, making it a robust choice for electrical protection in commercial and industrial settings.
