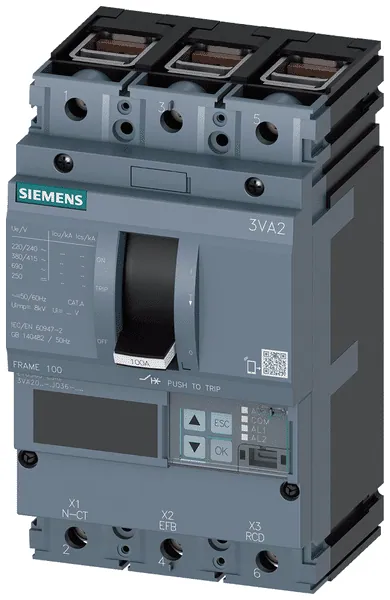

Siemens 3VA2063-8JQ36-0AA0

The 3VA20 3P 63A 150KA ETU5-LSIG BOX is designed for low voltage applications, adhering to IEC standards. It features a high breaking capacity within a compact frame, specifically rated at 150kA at 415V and 24kA at 690V, making it suitable for demanding environments.

Equipped with the ETU560 electronic trip unit, this circuit breaker ensures reliable line protection through integrated overload and short-circuit protection settings. The overload release current can be adjusted from 25A to 63A, while the short-circuit release can be set between 0.6 to 10 times the rated current, enhancing operational safety and flexibility.

Physical dimensions of the device are 4.1 inches in width, 7.1 inches in height, and 4.2 inches in depth. Additionally, the device is suitable for installation on DIN rails and features a front-side main circuit connection via a frame clamp. It includes integrated earth fault protection and is rated IP40 for dust and moisture resistance.

For applications requiring motor drive capabilities, this circuit breaker can be integrated with an external motor drive, although it does not come with an integrated motor drive option. The construction is fixed built-in, ensuring durability under various operational conditions.
