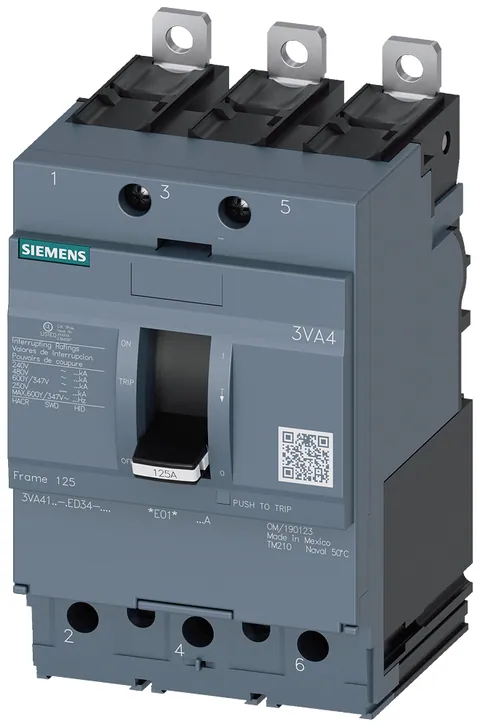

Siemens 3VA4135-6ED34-1AA0

The 3VA41 circuit breaker is a low voltage device designed for robust line protection with a thermal-magnetic trip unit. It features a high breaking capacity, classified as Class H, allowing it to handle 65kA at 480V and 25kA at 600V. The circuit breaker operates with a rated current of 35A across three poles, ensuring reliable performance in demanding environments.

With dimensions of 3 x 5.5 x 3.7 inches, the device is compact while offering significant protection capabilities. It is equipped with fixed overload protection set at Ir=35A and short-circuit protection at Ii=10 x In. The load side includes lugs for easy connection, and it is rated for naval applications at 50 degrees Celsius.

This device is compliant with UL489 standards and is constructed for installation on DIN rails, enhancing its versatility in various industrial setups. The absence of integrated earth fault protection and under-voltage release indicates a specific design focus, catering to applications where such features are not required.
