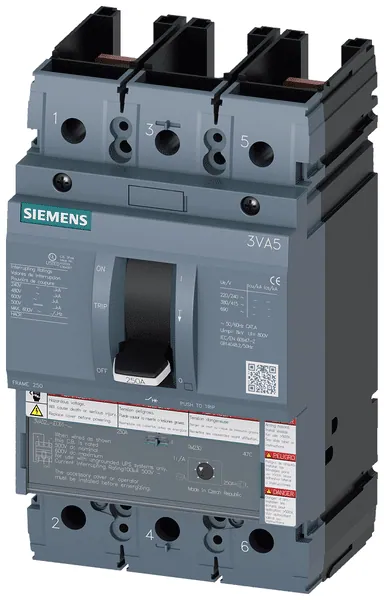

Siemens
3VA5220-6EC61-0AA0
BRKR 3VA52 2(3)P 200A 65KA FTAM
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
€422.57
1
Metodi di pagamento:
Un totale di 65 Parts In-Stock da 14 Distributors
Condizioni del prodotto:
Offerta con tempi di consegna del produttore
Spedizione in:Su richiesta
Miglior prezzo:
€367.53
Additional Information
- Part Number
- 3VA5220-6EC61-0AA0
- UPC
- 804766308338
- Tariff Code
- 8536200020
- Country of Origin
- CZ
Specifications
- Country of Origin
- CZ
- Number of poles
- 2
- Rated voltage
- 690 V
- Motor drive optional
- true
- Degree of protection (IP)
- IP40
- Rated permanent current Iu
- 200 A
- Type of control element
- Rocker lever
- Overload release current setting
- 200 A
- Complete device with protection unit
- true
- DIN rail (top hat rail) mounting optional
- true
- Suitable for DIN rail (top hat rail) mounting
- true
- Type of electrical connection of main circuit
- Other
- Number of auxiliary contacts as change-over contact
- 0
- Position of connection for main current circuit
- Other
- Adjustment range undelayed short-circuit release
- 1000 A
- Number of auxiliary contacts as normally open contact
- 0
- Number of auxiliary contacts as normally closed contact
- 0
- Device construction
- Built-in device fixed built-in technique
- Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
- 70 kA
