Siemens
4EU3652-8UA00-0AA0
MAIN RCT 3AC480V 60HZ 720A UK2 prcnt
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
£997.73
1
Metodi di pagamento:
Un totale di 2 Parts In-Stock da 15 Distributors
Condizioni del prodotto:
Offerta con tempi di consegna del produttore
Spedizione in:Su richiesta
Miglior prezzo:
€1,910.18
Descrizione
AttivoConforme a RoHS

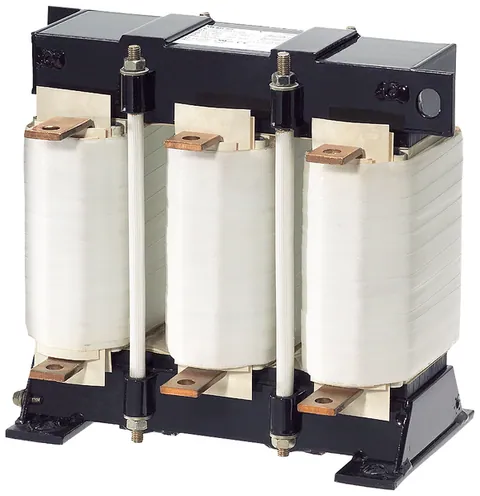

MAINS CHOKE F.FU; PHASES:3; UN1(V):480; ITHMAX 1(A) / F1(HZ):720 /60; I LN (A):648; UK(%):2; LN(MH):0,0196; TA/ISOKL:40 /H; IP00; TYPE OF TERMINALS:FLAT-TYPE TERMINAL; EN 61558-2-20 >UL/CSA-RECOGNIZED< >CHOKE<Additional Information
- Part Number
- 4EU3652-8UA00-0AA0
- UPC
- 754554961323
- Tariff Code
- 8504508000
- Country of Origin
- CZ
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Coil for low-voltage
- Class Code : EC002563
- Version : 7
Specifications
- Country of Origin
- CZ
- Protection type IP
- IP00
- Rated inductivity
- 0 millihenry
- Suitable as line reactor
- true
- Suitable as commuting reactor
- true
- Max. rated current with AC
- 648 ampere
- Min. rated current with AC
- 648 ampere
- Max. rated operating frequency
- 60 hertz
- Min. rated operating frequency
- 50 hertz
- Max. rated operating voltage Ue
- 480 volt
- Relative short-circuit voltage
- 2 percent
- Suitable as interference suppression coil
- true
