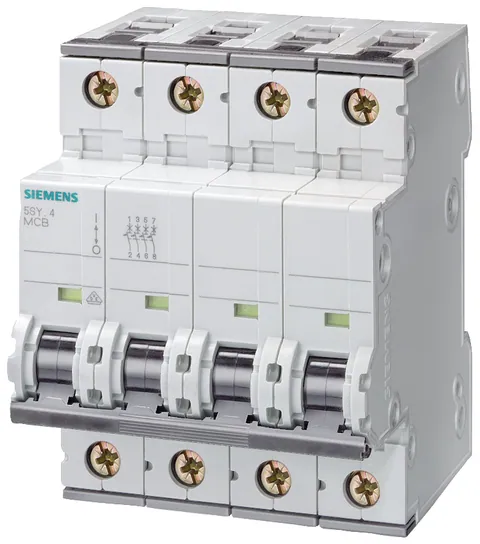

Siemens 5SY4613-5

The Supplementary Protector is designed for use in AC applications with a rated current of 13 A and operates at a voltage of 480 VAC. It complies with UL1077 standards and is classified as an IEC Mini Circuit Breaker, featuring 3 + N poles. With a trip characteristic curve A, it measures 72 mm in width and 70 mm in depth.

This device is suitable for environments requiring a pollution degree of 3 and has a degree of protection rated at IP20. It is capable of switching neutral concurrently and allows for additional equipment connections. The rated impulse withstand voltage is specified at 4 kV, and it can operate efficiently in ambient temperatures ranging from -40 °C.

Furthermore, the rated short-circuit breaking capacity is notable, with 10 kA at 230 V and 400 V as per EN 60898, and 20 kA at both voltage levels according to IEC 60947-2 standards. The product is built with a solid-core conductor cross-section of 0.75 mm² and supports multi-wired connections of the same gauge. This supplementary protector is UL File E116386 compliant, ensuring reliability and adherence to safety standards.
