Siemens
6ES7141-5BF00-0BA0

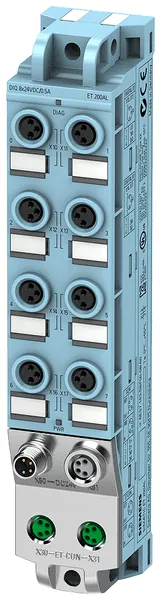

ET 200AL, DI 8X24VDC, 8XM8
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
€71.87
1
Metodi di pagamento:
Un totale di 337 Parts In-Stock da 40 Distributors
Condizioni del prodotto:
Descrizione
AttivoConforme a RoHS
SIMATIC et 200al, di 8x24VDC, 8xm8, degree of protection IP67Additional Information
- Part Number
- 6ES7141-5BF00-0BA0
- UPC
- 887621843083
- Country of Origin
- DE
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : Fieldbus, decentr. periphery - digital I/O module
- Class Code : EC001599
- Version : 7
Specifications
- Country of Origin
- DE
- Depth
- 40 mm
- Width
- 30 mm
- Height
- 159 mm
- System accessory
- true
- Supply voltage DC
- 20.4 V
- Number of digital inputs
- 8
- Number of digital outputs
- 0
- Rail mounting possible
- true
- Type of digital output
- None
- Front build in possible
- true
- Number of HW-interfaces USB
- 0
- Input current at signal 1
- 3.2 A
- Number of HW-interfaces other
- 0
- Number of interfaces PROFINET
- 0
- Permitted voltage at input
- -30 V
- Digital inputs configurable
- true
- Number of HW-interfaces RS-232
- 0
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 0
- Type of electric connection
- Other
- Voltage type of supply voltage
- DC
- Number of HW-interfaces Wireless
- 0
- Number of HW-interfaces parallel
- 0
- Type of voltage (input voltage)
- DC
- Wall mounting/direct mounting
- true
- Degree of protection (IP)
- IP65/IP67
- Time delay at signal exchange
- 1.2 ms
- Number of HW-interfaces serial TTY
- 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Number of HW-interfaces industrial Ethernet
- 0
- Fieldbus connection over separate bus coupler possible
- true
