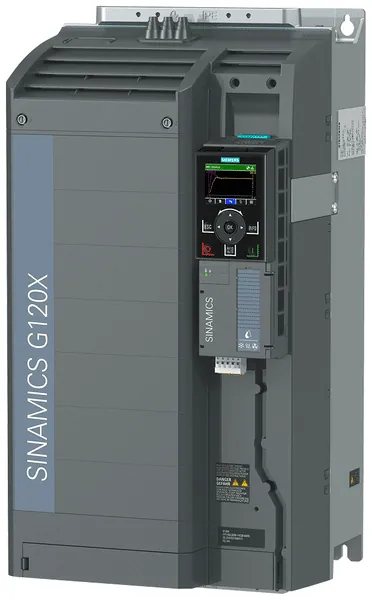

Siemens 6SL3220-3YH40-0AB0

The SINAMICS G120X is designed for a rated power output of 55 kW, capable of handling 110% for 60 seconds and 100% for 240 seconds. It features a radio interference suppression filter suitable for category C2, and operates within a mains voltage range of 500-690V 3AC with a tolerance of +10/-20%. The device supports a frequency of 47-63Hz and can function in ambient temperatures from -20 to +45 °C. Its frame size is classified as FSE and it has a degree of protection rated at IP20, compliant with UL open type standards.

Equipped with an Intelligent Operator Panel, the G120X does not include IO expansion. Integrated fieldbus options encompass MODBUS RTU, BACnet MS/TP, and USS protocols. With a nominal output current of 64 A, it is configured for three-phase input and output, and supports six digital inputs, two analogue inputs, and one analogue output. The device has a maximum output frequency of 550 Hz and offers various hardware interfaces, including one RS-232 and one RS-485 port, among others.
