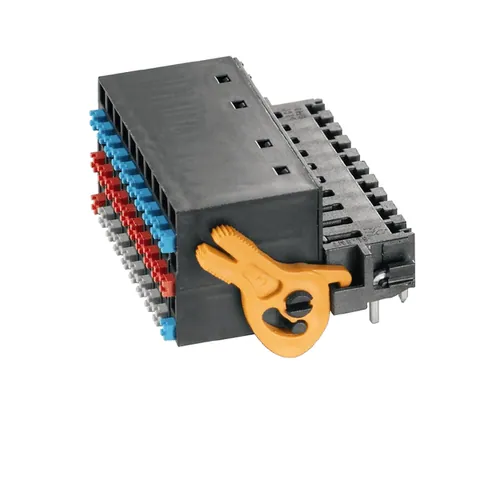

Weidmuller 1000610000

The PCB plug-in connector is engineered for effective integration in electronic assemblies, specifically utilizing a 3.50 mm pitch. It includes a male header and a clip-on flange that enables secure mounting on the PCB, facilitating THT/THR solder connections. This connector supports a maximum of 5 poles and is designed for a solder pin length of 1.5 mm.

Rated for a voltage of up to 300 V and a current of 10 A, the product aligns with UL 1059 standards, ensuring compliance with safety regulations. The device has undergone rigorous testing in accordance with IEC 60664-1 and IEC 61984 standards, demonstrating its capability to handle varying environmental conditions, including an operating temperature range from -50 °C to 100 °C.

Constructed from LCP GF insulating material with a black finish, it meets the requirements for moisture sensitivity levels and flammability ratings, showcasing a GWIT of 930 °C. The connector’s dimensions include a width of 24.36 mm, a height of 9 mm, and a depth of 11.1 mm, with a net weight of 1.853 g. Its design allows for touch-safe protection, adhering to DIN VDE standards, and it can endure up to 25 plugging cycles.

For additional specifications, the connector is categorized under the OMNIMATE Signal product family and features gold-plated contact surfaces available upon request. This component is compliant with IPC-A-610
