Weidmuller 1002020000

The LL 5.08/21/90 3.2SN OR BX terminal is designed for printed circuit boards, featuring a 5.08 mm pitch and a configuration of 21 poles angled at 90°. The terminal includes a solder pin with a length of 3.2 mm, suitable for a maximum clamping range of 6 mm², and utilizes a clamping yoke connection.

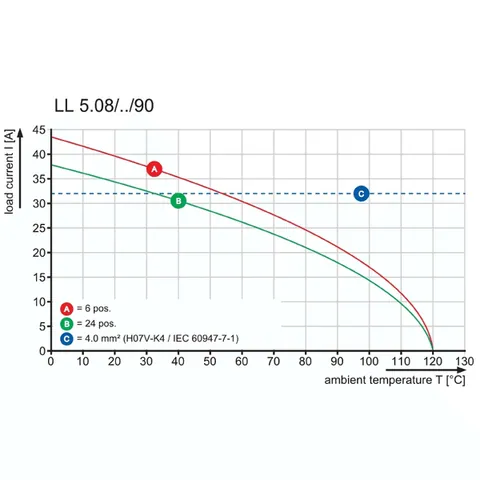

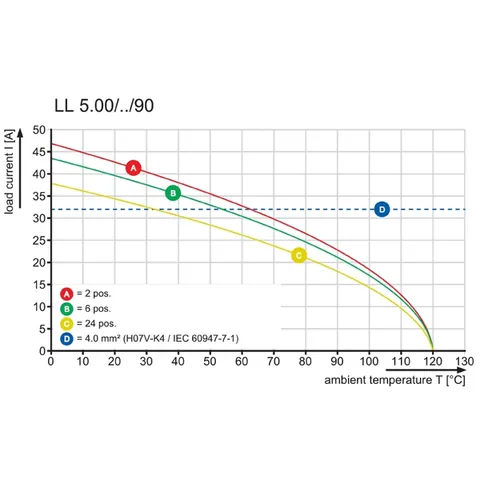

This terminal complies with UL 1059 rated data, supporting a rated voltage of 300 V and a rated current of up to 20 A in specific applications. The temperature range for operation extends from -50 °C to 120 °C, ensuring versatility in various environments. The material used is Wemid (PA) in an orange color, characterized by a high Comparative Tracking Index (CTI) of ≥ 600 and insulation strength greater than or equal to 108 Ω.

In terms of dimensions, the terminal measures 107.33 mm in width and 20.3 mm in height, with a net weight of 34 g. It adheres to standards set by IEC, and its design is optimized for PCB mounting via THT solder connection. The terminal also offers touch-safe protection as per DIN VDE standards, ensuring user safety.

Notable approvals include CSA, EAC, and UR, with compliance to RoHS standards, reflecting its suitability for use in regulated environments. The terminal's robust specifications make it a reliable choice for various electronic applications.
