Weidmuller 1047470000

The 15.00 mm printed circuit board terminal features a 4-pole configuration with a 90° clamping yoke connection. It is designed for a maximum clamping range of 50 mm² and accommodates a solder pin length of 4.5 mm. The terminal is constructed from Wemid (PA) insulating material, with a black finish that complies with RAL 9011 standards.

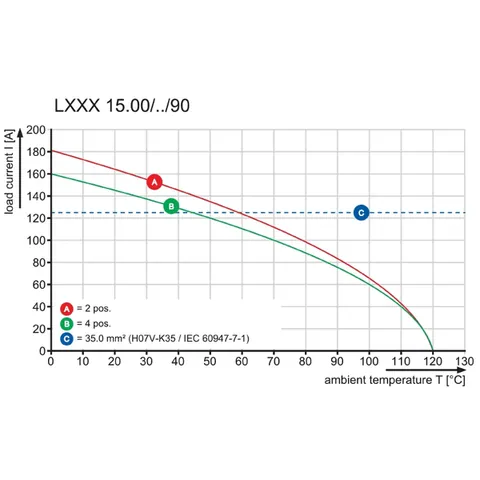

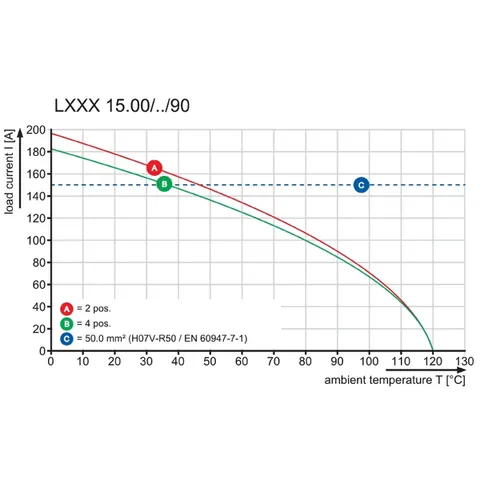

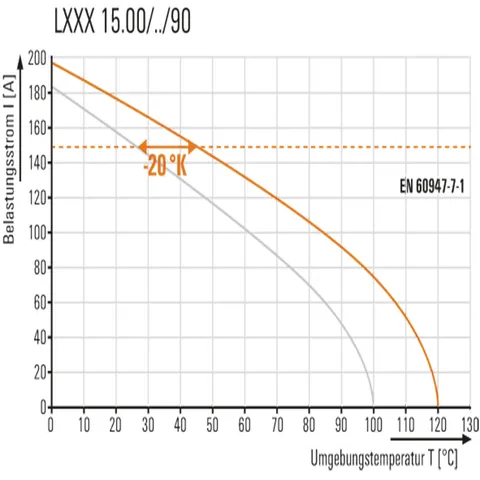

Rated for a maximum voltage of 600 V and a rated current of up to 126 A, this terminal meets stringent safety standards according to UL 1059. It also adheres to IEC 60664-1 and IEC 61984, ensuring reliable performance in industrial applications. The product is capable of withstanding a temperature range from -50 °C to 120 °C, making it suitable for various operational environments.

With dimensions of 75.5 mm in width, 56 mm in height, and a depth of 31 mm, the terminal maintains a compact design while allowing for effective wire connections. The product supports wire sizes from AWG 20 to AWG 1, confirming its versatility for different wiring needs. Additionally, it complies with multiple approvals including CSA and EAC, and conforms to RoHS specifications.
