Weidmuller 1069770000

The 5.00 mm PCB plug-in connector is designed with a 4-pole male header and a 90° outgoing elbow for effective board connection. It utilizes THT/THR solder connections, ensuring reliable attachment to printed circuit boards.

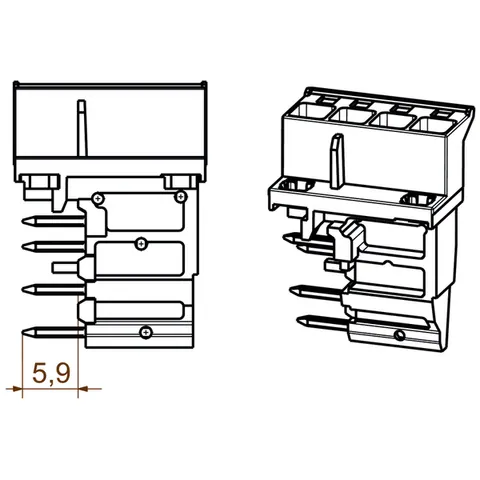

With a solder pin length of 5.9 mm and a width of 20.4 mm, this connector accommodates a range of wire cross-sections from AWG 26 to AWG 12. It is tested according to IEC 60664-1 and IEC 61984 standards, achieving a maximum rated current of 10 A at 20°C and 9 A at 40°C. The rated voltages vary depending on the pollution degree, reaching up to 400 V for pollution degree II/2.

Constructed from LCP insulating material with a black finish, it has a Comparative Tracking Index (CTI) of ≥ 175 and operates within a temperature range of -40 °C to 120 °C. The component is also compliant with multiple approval standards, including CSA and cURus, and carries the UL File Number E60693.

Additional technical specifications highlight a storage temperature range of -25 °C to 55 °C and a maximum relative humidity of 80% during storage. The connector supports up to 25 plugging cycles and can be coded for specific applications. For detailed approval values, refer to the respective certification documents.
