Weidmuller 1096120000

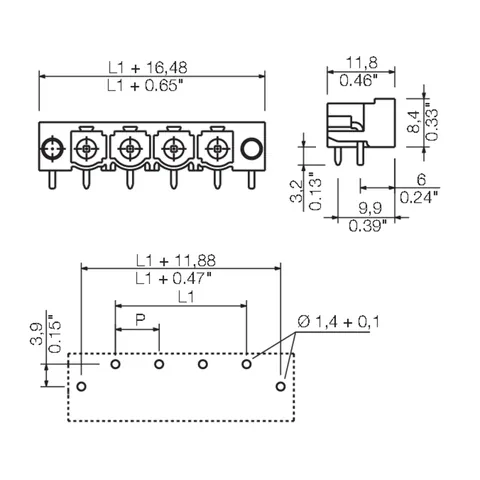

The PCB plug-in connector provides a male header configuration with a right-angle design at 90°. It has a pitch of 7.62 mm and accommodates 11 poles, each equipped with a solder pin measuring 3.2 mm in length. The connector is housed in an orange box and is suitable for use in various electronic applications.

Rated for a voltage of up to 600 V and a current capacity of 20 A under specific conditions, this product conforms to multiple standards, including UL 1059 and IEC 60664-1. The clearance and creepage distances are 6.5 mm and 11.2 mm, respectively, ensuring reliable performance in diverse environments. The operating temperature range spans from -50 °C to 100 °C, making it versatile for various applications.

Manufactured from PBT insulating material, the connector exhibits a Comparative Tracking Index (CTI) of ≥ 200 and complies with UL 94 V-0 flammability standards. The contact surfaces are treated with a tinned finish to enhance conductivity and durability. This connector is part of the OMNIMATE Power - series BL/SL 7.62HP, which is designed for board connections using THT solder methods.
