Weidmuller 1122661001

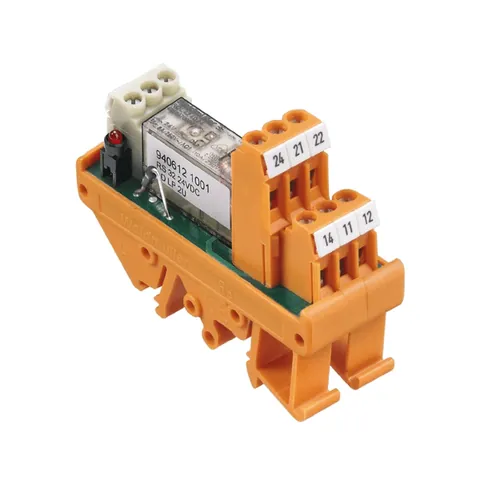

The RS 32 24-48VUC LD LP 2U relay module features two CO contacts made of AgNi 90/10 material, designed for reliable switching in various applications. This module operates within a rated control voltage range of 24 V UC ±10 % to 48 V UC ±10 % and supports a continuous current of 4 A. The dimensions of this module include a width of 25 mm (0.984 inch), height of 70 mm (2.756 inch), and depth of 63.5 mm (2.5 inch), with a net weight of 45.68 g.

Connection is facilitated through a screw method, accommodating wire sizes from 0.5 mm² to 4 mm² with a stripping length of 8 mm. The relay module is designed for a mechanical service life of up to 30 million switching cycles, ensuring durability. The rated switching voltage is 250 V AC with a maximum switching capacity of 2000 VA for resistive loads. Additionally, it incorporates a status indicator in the form of a red LED.

This relay module adheres to various standards, including DIN EN 50178, and is compliant with CE and EAC approvals. Its environmental compliance includes REACH SVHC for lead (7439-92-1). The operating temperature range spans from -25 °C to 40 °C, while storage temperatures can be maintained between -40 °C and 60 °C. The module is rated for pollution severity level 2 and has an IP20 protection degree.
