Weidmuller 1146900000

This PCB plug-in connector is designed with a male header and supports a 5.08 mm pitch, accommodating 10 poles at a 90° angle. The solder connection is through-hole (THT), with a solder pin length of 3.2 mm. The component is manufactured in orange and packaged in a box.

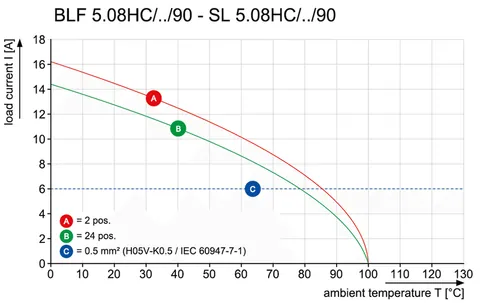

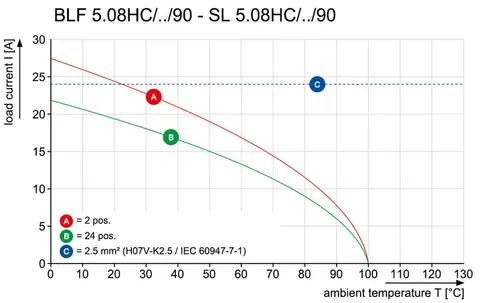

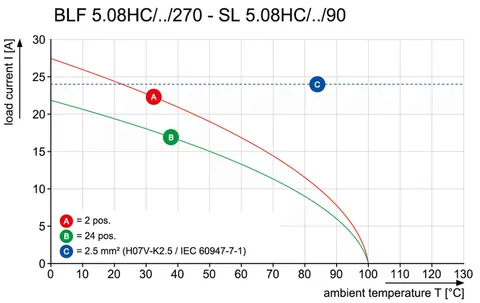

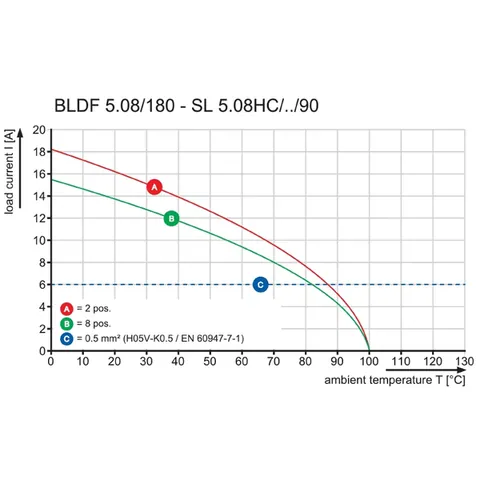

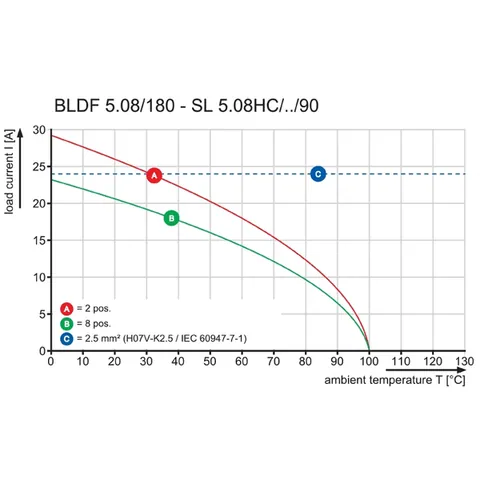

Rated according to various standards, the connector supports a voltage of up to 300 V and a current rating of 18.5 A under specific conditions. Its construction includes insulating material made from PA GF, providing a Comparative Tracking Index (CTI) of ≥ 550 and a UL 94 flammability rating of V-0. The connector operates effectively within a temperature range of -50 °C to 100 °C.

For further compliance, the connector is tested to IEC standards and has achieved approvals including cURus and EAC. It features a net weight of 3.63 g and dimensions of 50.8 mm in width, 11.7 mm in height, and 12 mm in depth, ensuring compatibility with various PCB designs.

The product family belongs to the OMNIMATE Signal series and is suitable for THT solder connections. With a maximum plugging force of 10 N and a maximum pulling force of 7.5 N per pole, this connector is designed for reliable performance in demanding applications.
