Weidmuller 1147650000

This PCB plug-in connector features a male header with a pitch of 5.08 mm and is designed for THT solder connections. It accommodates 18 poles and has a 180° outgoing elbow, with solder pin length measuring 3.2 mm. The product belongs to the OMNIMATE Signal series and is classified under the Designation Code SL 5.08HC/18/180F 3.2SN OR BX.

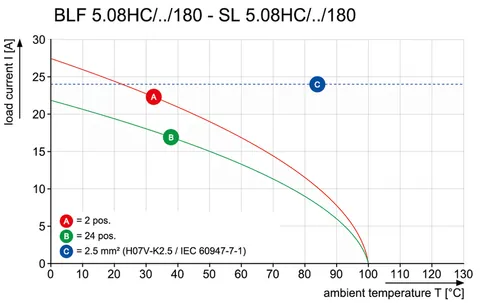

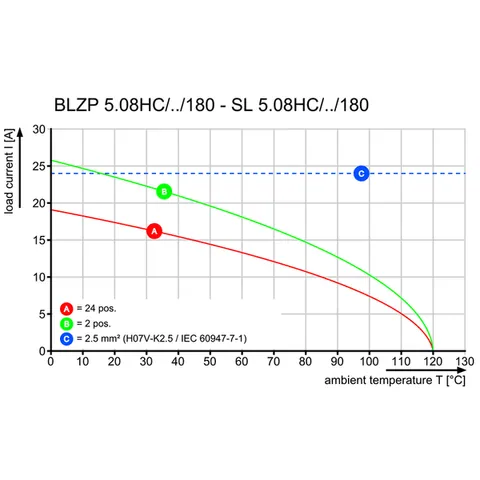

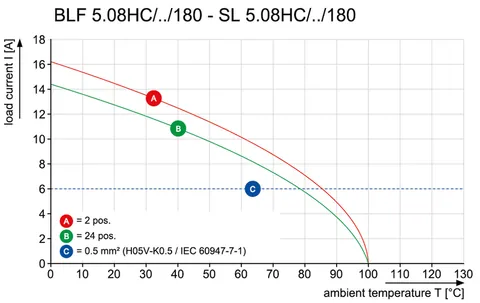

Constructed from PA GF insulating material in an orange color, this connector offers a Comparative Tracking Index (CTI) of ≥ 550 and an insulation strength of ≥ 108 Ω, ensuring reliable performance in various environments. The rated voltage is 300 V for both use groups as per UL 1059, with a maximum rated current of 18.5 A under group B conditions.

For installation, the connector is suitable for operating temperatures ranging from -50 °C to 100 °C and can endure a storage temperature between -25 °C and 55 °C, with a maximum relative humidity of 80%. It complies with several approvals, including cURus, EAC, and KEMAKEUR, and fulfills the requirements of IEC standards.

Additional features include a maximum plugging cycle of 25 and a maximum plugging force of 10 N per pole. The connector is packaged in a box with specific dimensions for shipping purposes.
