Weidmuller 1148480000

The 5.08 mm PCB plug-in connector facilitates a robust board connection through its THT solder connection. With a total of 19 poles arranged at a 180° angle, this connector is engineered for efficient integration into electronic systems.

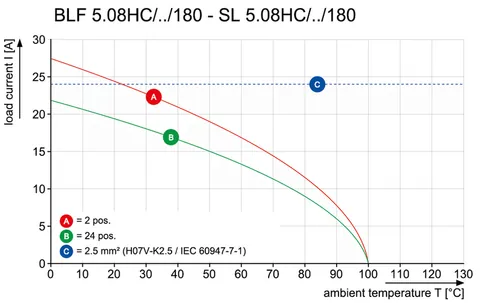

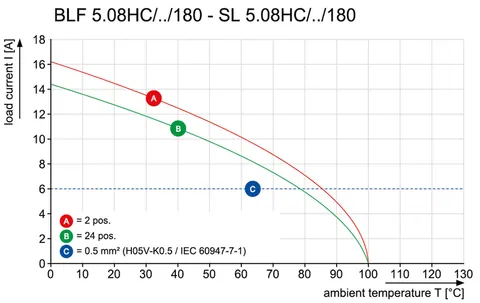

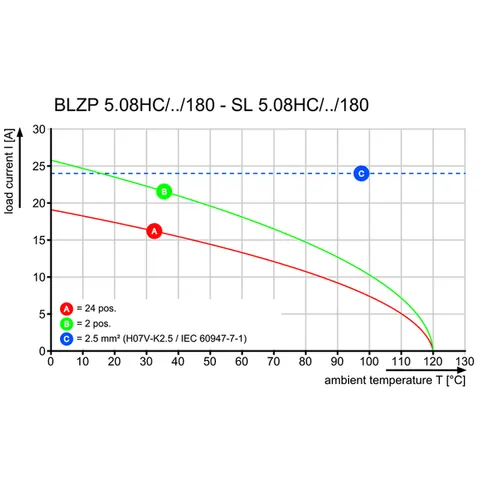

Designed for optimal performance, it supports a rated voltage of 300 V and a rated current of up to 18.5 A based on the UL 1059 standard. It is constructed from PA GF insulating material, colored black to comply with RAL 9011 specifications, and features a high Comparative Tracking Index (CTI) of ≥ 550, ensuring reliable operation across various environments.

The product meets multiple international standards, including IEC 60664-1 and IEC 61984, and is approved by cURus and EAC certifications. Its operational temperature range spans from -50 °C to 100 °C, making it suitable for diverse applications.

Dimensions include a width of 96.52 mm, a height of 15.2 mm, and a depth of 8.5 mm. The solder pin length is 3.2 mm, with precision tolerances for maximum reliability during installation. It features a plug contact with a nickel and tin layer structure, enhancing its durability and conductivity.

For additional specifications, the product is classified under the OMNIMATE Signal series, coded for compatibility, and rated for a maximum of 25 plugging cycles. The product designation code is included for reference.
